ข้อมูลจำเพาะทางเทคนิค 3M N3372-6202RB

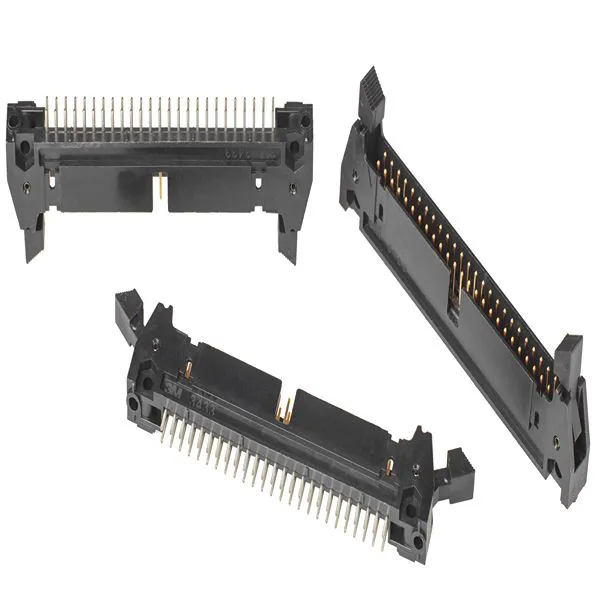

3M N3372-6202RB
- Product Type
- PCB Header
- Series
- 3000
- Pitch
- 2.54mm
- Current
- 1.75
- Number of Contacts
- 60
- Housing Material
- Glass Filled Polyester
- Number of Rows
- 2
- Orientation
- Straight
- Shrouded/Unshrouded
- Shrouded
- Connector System
- Board-to-Board, Wire-to-Board
- Mount Type
- Through Hole
- Contact Plating
- Gold
- Contact Material
- Copper Alloy
- Termination Type
- Solder
- Row Pitch
- 2.54mm
- Minimum Operating Temperature
- -55°C
- Tail Pin Length
- 0.01in
- Maximum Operating Temperature
- 105°C
- Contact Gender
- Male
- Mating Pin Length
- 6.2mm
- Standards/Approvals
- No
- Voltage
- 1V
