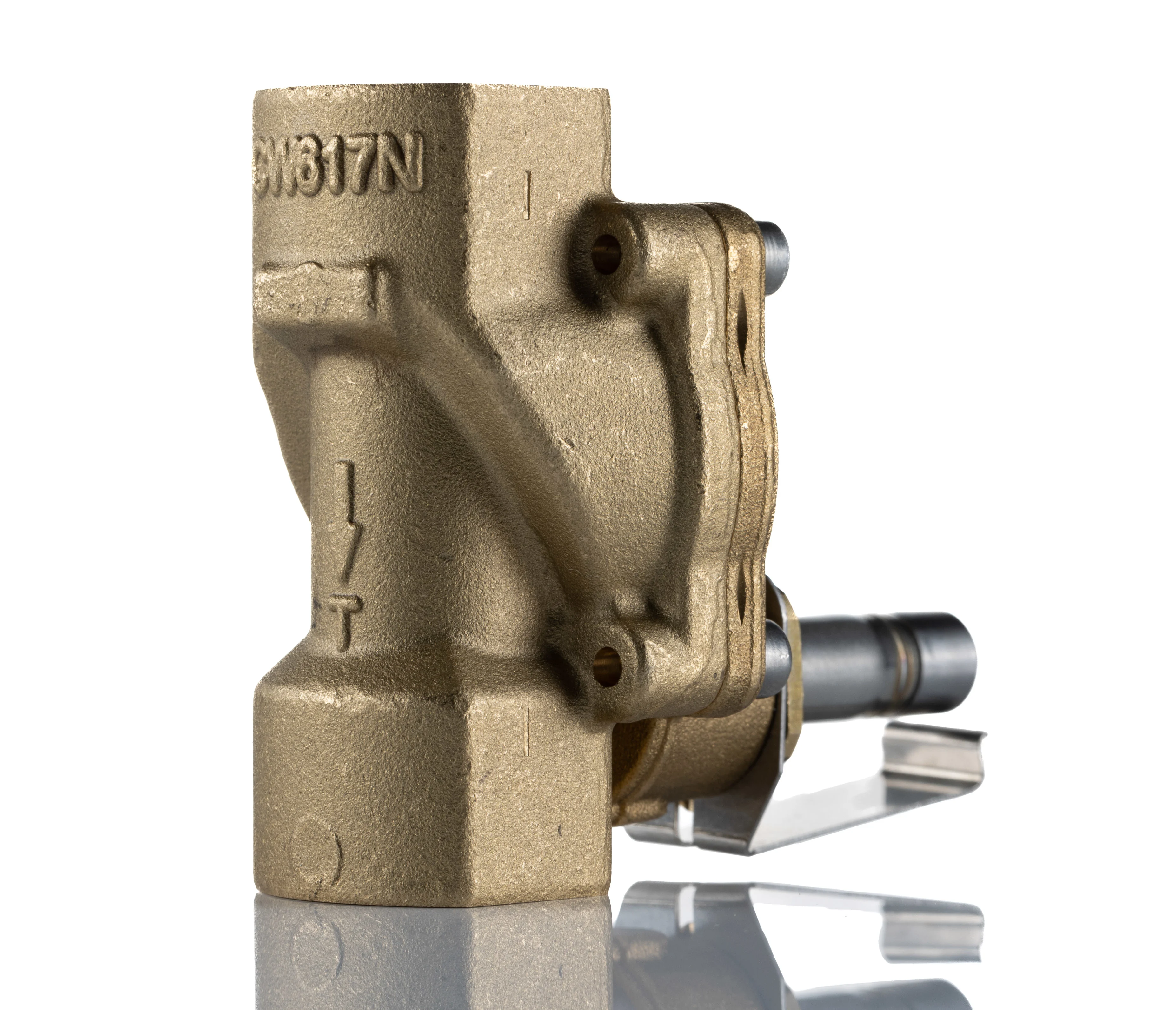

Buschjost 8240200.9100.00000 Solenoid Valve 8240200.9100.00000, 2 Port, NC, 230V, 24 V 1/2 in, 1/2 in

ข้อมูลจำเพาะทางเทคนิค Buschjost 8240200.9100.00000

Buschjost 8240200.9100.00000

Supply Voltage

230V, 24V

Product Type

Solenoid Valve

Number of Ports

2

Inlet Port Size

1/2 in

Default Valve Position

NC

Outlet Port Size

1/2 in

Outlet Connection Type

Threaded

Inlet Connection Type

Threaded

Inlet Thread Standard

G

Orifice Diameter

12mm

Application

Neutral Gas, Liquid

Body Material

Brass

Series

8240

Inlet Port Gender

Female

Minimum Operating Temperature

-10°C

Outlet Port Gender

Female

Maximum Operating Pressure

16 bar

Outlet Thread Standard

G

Maximum Operating Temperature

50°C

Standards/Approvals

No

Hazardous Area Certification

No

Flow Factor Kv

3.8m³/h

Maximum Closing Time

30ms

Maximum Opening Time

30ms
