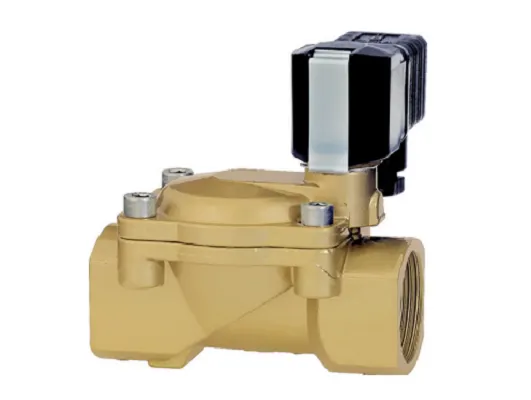

Buschjost 8240400.9100.00000 Solenoid Valve 8240400.9100.00000, 2 Port, NC 1 in, 1 in

ข้อมูลจำเพาะทางเทคนิค Buschjost 8240400.9100.00000

Buschjost 8240400.9100.00000

Product Type

Solenoid Valve

Number of Ports

2

Inlet Port Size

1 in

Default Valve Position

NC

Outlet Port Size

1 in

Inlet Connection Type

Threaded

Outlet Connection Type

Threaded

Inlet Thread Standard

G

Orifice Diameter

25mm

Series

8240

Inlet Port Gender

Female

Application

Neutral Gas, Liquid

Body Material

Brass

Outlet Thread Standard

G

Outlet Port Gender

Female

Minimum Operating Temperature

-10°C

Maximum Operating Pressure

16 bar

Maximum Operating Temperature

50°C

Standards/Approvals

No

Hazardous Area Certification

No

Maximum Opening Time

30ms

Flow Factor Kv

9.5m³/h

Maximum Closing Time

30ms
