ข้อมูลจำเพาะทางเทคนิค Eaton 280954 P5-315/EA/SVB-SW/HI10

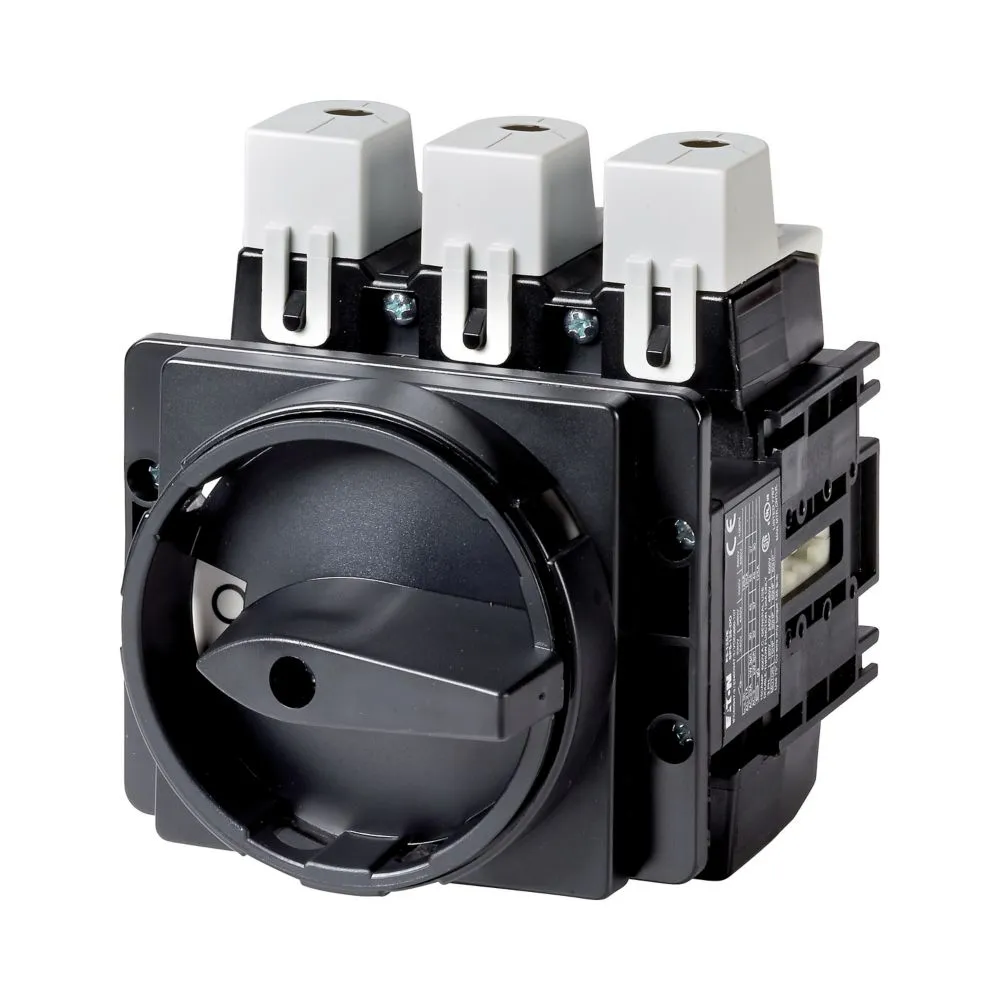

Eaton 280954 P5-315/EA/SVB-SW/HI10
- Number of Poles
- 3
- Product Type
- Fuse Switch Disconnector
- Mount Type
- Rear
- Electrical Phase
- 3
- Switching Voltage
- 690V
- Terminal Type
- Screw
- Switching Current
- 250A
- IP Rating
- IP65
- Series
- P5
- Switching Power
- 90kW
- Fuse Current
- 250A
- Minimum Operating Temperature
- -25°C
- Maximum Operating Temperature
- 50°C
- Standards/Approvals
- CSA Class No.:3211-05, CE, CE marked, CSA, CSA-C22.2 No. 14-05, CSA-C22.2 No. 94, CSA File No.:223805, CSA Std. C22.2 No. 14-05, EN 60947-3, IEC 60947, IEC/EN 60204, IEC/EN 60947, IEC/EN 60947-3, NLRV7, UL, UL 508, UL Category Control No.:NLRV, UL File No.:E36332, VDE, VDE 0660
