ข้อมูลจำเพาะทางเทคนิค Festo QSMT-1/8-4

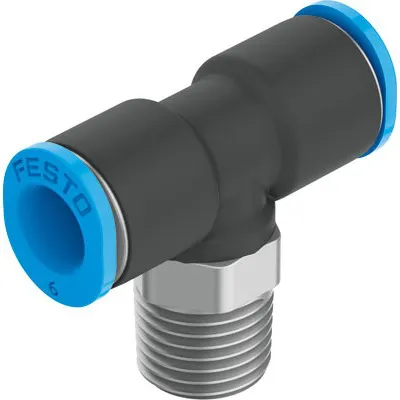

Festo QSMT-1/8-4
- Product Type
- Pneumatic Fitting
- Sub Type
- Push-In T Fitting
- Connection Size A
- R 1/8
- Connection Type A
- R 1/8 Male
- Connection Size B
- 4 mm
- Connection Type B
- Threaded to Tube
- Thread Standard
- R
- Series
- QSMT
- Thread Size
- R 1/8 in Male
- Minimum Operating Temperature
- -10°C
- Material
- High Alloy Stainless Steel, Nickel Plated Brass, Nitrile Rubber, Polybutylene Terephthalate, Polyoxymethylene
- Maximum Operating Temperature
- 80°C
- Standards/Approvals
- RoHS
- Mounting Hole Diameter
- 10 mm
- Maximum Operating Pressure
- 0.6 Mpa
- Connection Type
- R 1/8 Male
- Model Number
- 153355
