ข้อมูลจำเพาะทางเทคนิค Festo SPTE-P10R-Q3-V-2.5K

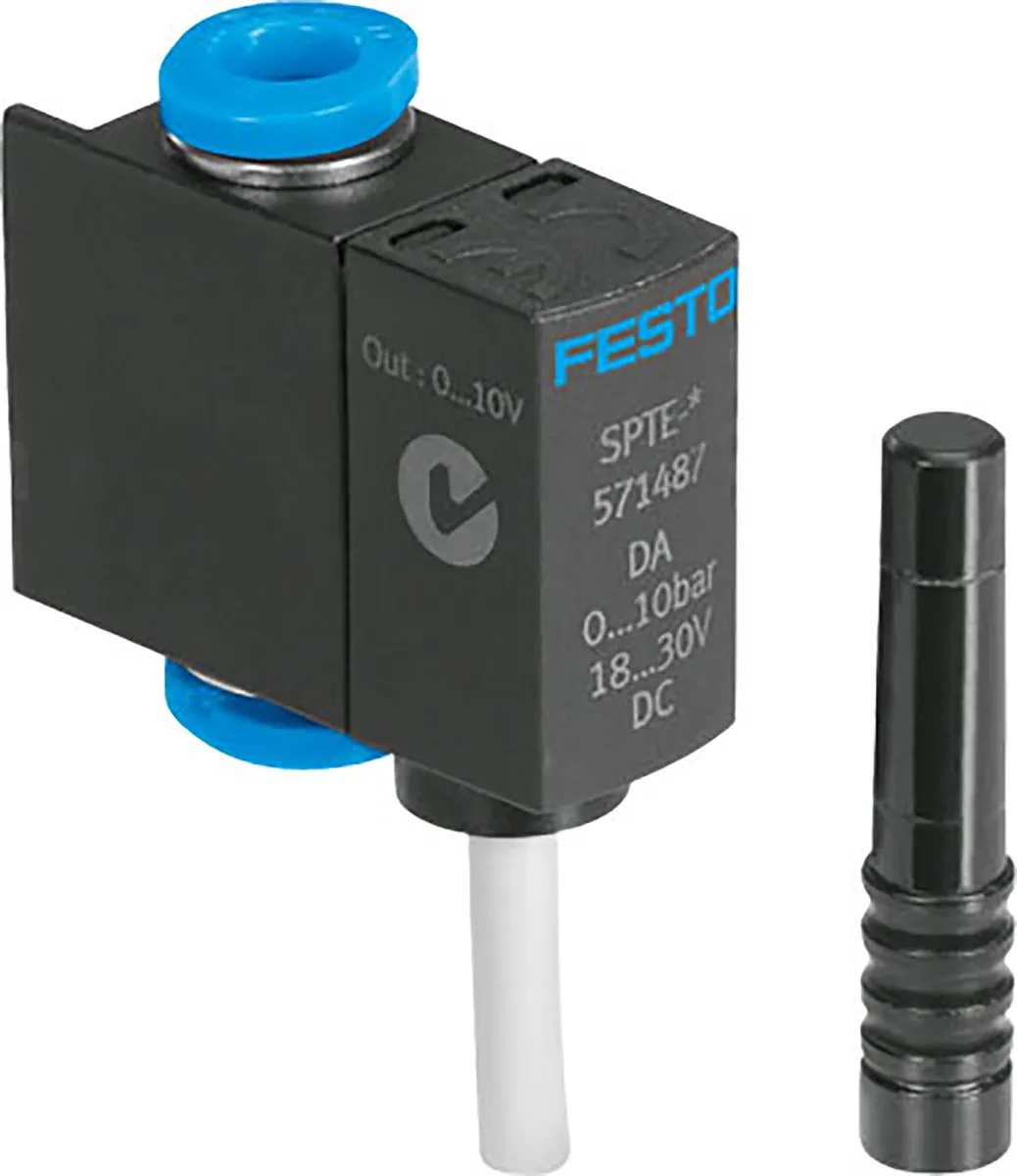

Festo SPTE-P10R-Q3-V-2.5K
- Suitable Medias
- Compressed Air
- Product Type
- Pressure Sensor
- Accuracy
- 4% (in The Ambient Temperature Range 0 To 50 °C) Full Scale, 3% (Room Temperature of Approximately 23 °C)
- Switch Output
- Analogue
- Minimum Operating Pressure
- 0bar
- Connection Thread Standard
- Push-in
- Pressure Type
- Relative Pressure
- Port Size
- 3 mm
- Voltage
- 30V dc
- IP Rating
- IP40
- Maximum Operating Temperature
- 50°C
- Maximum Operating Pressure
- 10 bar
- Minimum Operating Temperature
- 0°C
- Width
- 9.8mm
- Standards/Approvals
- ISO
- Height
- 24.7mm
- Series
- SPTE
- Depth
- 31.1mm
- Model Number
- 571486
