ข้อมูลจำเพาะทางเทคนิค Hamamatsu Photonics S5980

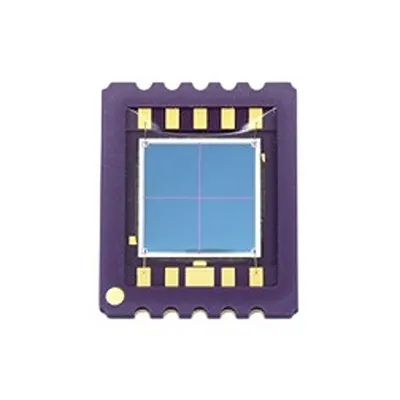

Hamamatsu Photonics S5980
- Product Type
- PIN Photodiode
- Spectrums Detected
- Ultraviolet, Infrared, Visible Light
- Wavelength of Peak Sensitivity
- 960nm
- Mount Type
- Surface
- Number of Pins
- 10
- Minimum Wavelength Detected
- 320nm
- Maximum Wavelength Detected
- 1100nm
- Minimum Operating Temperature
- -40°C
- Maximum Operating Temperature
- 100°C
- Length
- 10.6mm
- Standards/Approvals
- JEITA ET-7200, JEDEC J-STD-020 MSL 3
- Height
- 1.8mm
- Automotive Standard
- No
- Series
- S5
- Breakdown Voltage
- 30V
