ข้อมูลจำเพาะทางเทคนิค MEAN WELL HRP-600-15

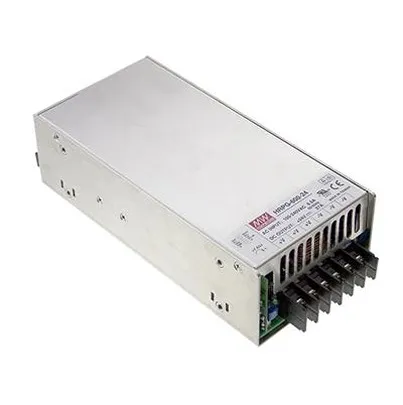

MEAN WELL HRP-600-15
- Product Type
- Switching Power Supply
- Maximum Output Voltage
- 15V
- Number of Outputs
- 1
- Power
- 600W
- Minimum Operating Temperature
- -40°C
- SMPS Output Current
- 120A
- Maximum Operating Temperature
- 70°C
- Weight
- 1.5kg
- Standards/Approvals
- EAC TP TC 004, -3, UL62368-1, TUV EN62368-1, EN61000-6-2, EN61000-4-2, EN61000-3-2, EN55035, EN55032 (CISPR32) Class B, BS ES/NZS62368.1
- Depth
- 63.5mm
- Length
- 218mm
- Width
- 105mm
- Series
- HRP-600
- Efficiency
- 89%
- Maximum Input Voltage
- 370V ac
- Output Current
- 43A
- Hazardous Area Certification
- No
- Minimum Input Voltage
- 85V
