ข้อมูลจำเพาะทางเทคนิค Molex 172298-1106

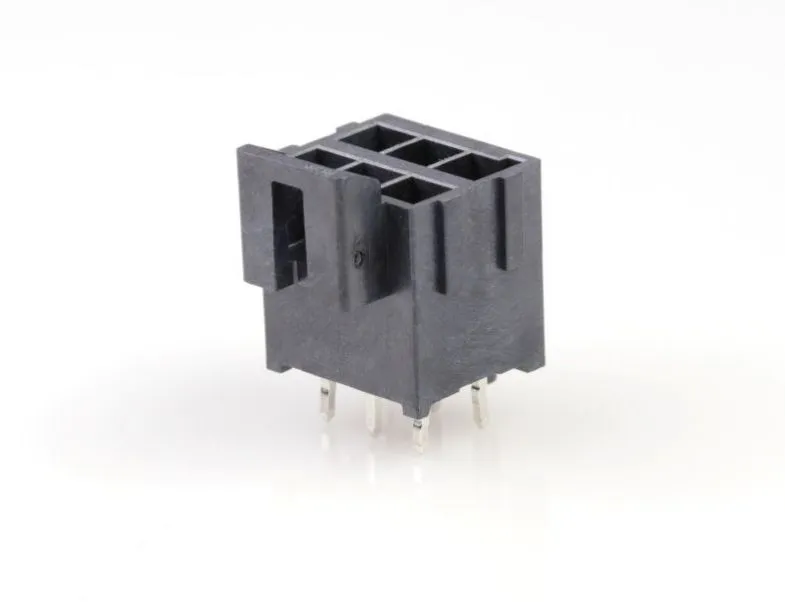

Molex 172298-1106
- Series
- Ultra-Fit
- Product Type
- PCB Header
- Current
- 14A
- Pitch
- 3.5mm
- Housing Material
- Liquid Crystal Polymer
- Number of Contacts
- 6
- Number of Rows
- 2
- Orientation
- Straight
- Shrouded/Unshrouded
- Shrouded
- Connector System
- Wire-to-Board
- Mount Type
- Through Hole
- Contact Plating
- Tin
- Contact Material
- Copper Alloy
- Row Pitch
- 3.5mm
- Termination Type
- Solder
- Minimum Operating Temperature
- -40°C
- Contact Gender
- Male
- Tail Pin Length
- 3.2mm
- Maximum Operating Temperature
- 105°C
- Standards/Approvals
- No
- Voltage
- 400V
- 3D Model
- https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=8951868&DisplayLogo=False
