ข้อมูลจำเพาะทางเทคนิค Molex 503566-4502

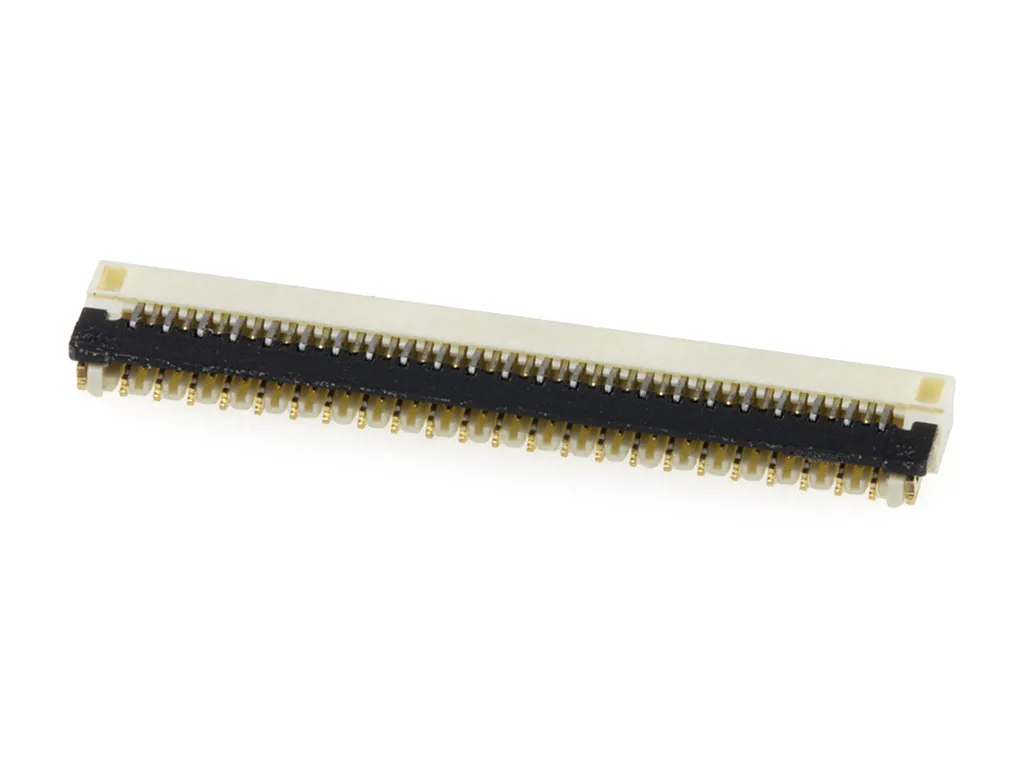

Molex 503566-4502
- Product Type
- FPC Connector
- Number of Contacts
- 45
- Sub Type
- FPC Connector
- Contact Material
- Phosphor Bronze
- Current
- 300mA
- Pitch
- 0.30mm
- Mount Type
- Surface
- Connector Gender
- Female
- Termination Type
- Surface Mount
- Contact Position
- Bottom
- Orientation
- Right Angle
- Insertion Force
- ZIF
- Locking Mechanism
- Yes
- Voltage
- 50V
- Series
- 503566
- Minimum Operating Temperature
- -40°C
- Contact Gender
- Female
- Maximum Operating Temperature
- 105°C
- Number of Rows
- 1
- Standards/Approvals
- UL 94V-0
- Contact Plating
- Gold over Nickel
- Housing Material
- Liquid Crystal Polymer
- 3D Model
- https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=0814580&DisplayLogo=False
