ข้อมูลจำเพาะทางเทคนิค Molex 51296-6094

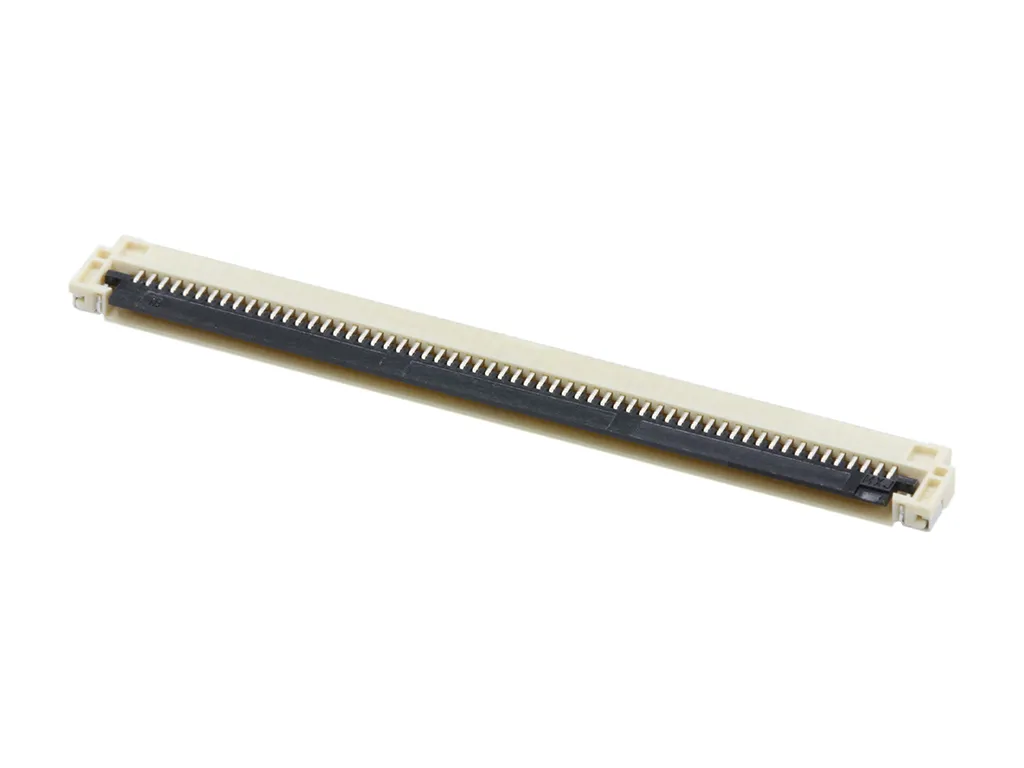

Molex 51296-6094
- Number of Contacts
- 60
- Product Type
- FPC Connector
- Sub Type
- Easy-On FFC/FPC Connector
- Contact Material
- Phosphor Bronze
- Current
- 500mA
- Pitch
- 0.5mm
- Mount Type
- Surface
- Contact Position
- Bottom
- Termination Type
- Bottom
- Insertion Force
- ZIF
- Orientation
- Right Angle
- Locking Mechanism
- Yes
- Voltage
- 5V
- Minimum Operating Temperature
- -40°C
- Series
- 51296-6094
- Maximum Operating Temperature
- 85°C
- Standards/Approvals
- EU RoHS, IEC 61249-2-21, IEC-62474 chemSHERPA, IPC 1752A Class C, IPC 1752A Class D, Low-Halogen, REACH SVHC
- Number of Rows
- 1
- Contact Plating
- Gold
- Housing Material
- Liquid Crystal Polymer
