ข้อมูลจำเพาะทางเทคนิค NTN 22320EAW33C3

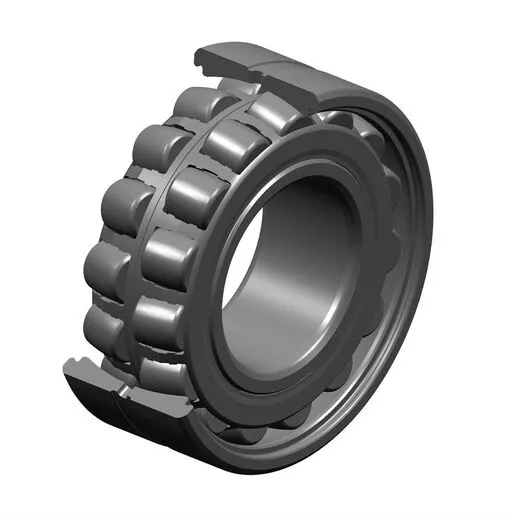

NTN 22320EAW33C3
- Product Type
- Spherical Roller Bearing
- Inside Diameter
- 100mm
- Race Width
- 73mm
- Cage Material
- Steel
- Roller Material
- 100Crmo7
- Static Load Rating
- 844kN
- Maximum Speed - Oil
- 3100rpm
- Series
- 22320EAW33C3
- Standards/Approvals
- RoHS Certificate of Compliance
- Dynamic Load Rating
- 827kN
- Outside Diameter
- 215mm
- Limiting Speed
- 3100rpm
- Bearing Material
- Through Hardened Steel
- Maximum Speed - Grease
- 2600rpm
- Internal Clearance
- C3
- Race Type
- Spherical
- 3D Model
- https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=0454890&DisplayLogo=False
