ข้อมูลจำเพาะทางเทคนิค NTN 22324EAKW33C3

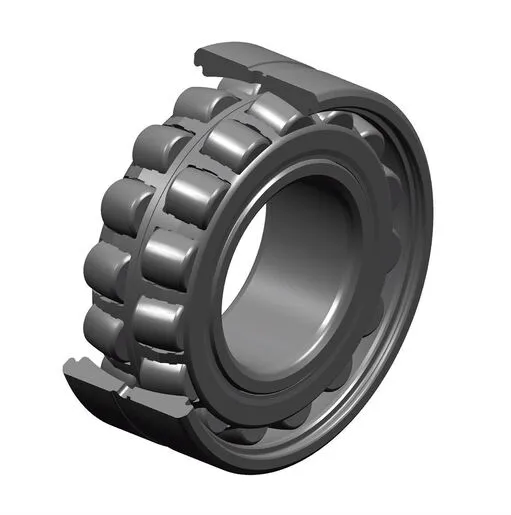

NTN 22324EAKW33C3
- Product Type
- Spherical Roller Bearing
- Inside Diameter
- 120mm
- Race Width
- 86mm
- Bore Type
- Tapered 1:12
- Cage Material
- Pressed Steel
- Static Load Rating
- 1280kN
- Bearing Material
- Through Hardened Steel
- Outside Diameter
- 260mm
- Dynamic Load Rating
- 1170kN
- Internal Clearance
- C3
- Limiting Speed
- 2500rpm
- Maximum Speed - Grease
- 2000rpm
- Standards/Approvals
- RoHS Certificate of Compliance
- Maximum Speed - Oil
- 2500rpm
- Series
- 22324
- Race Type
- Spherical
- 3D Model
- https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=0454900&DisplayLogo=False
