ข้อมูลจำเพาะทางเทคนิค Phoenix Contact 1055643

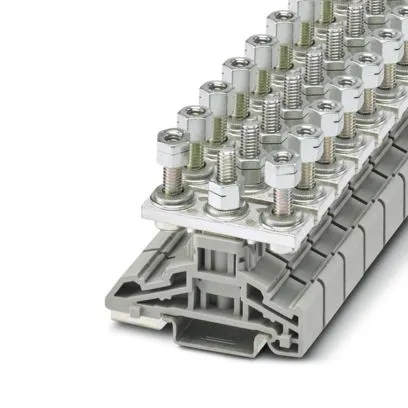

Phoenix Contact 1055643
- Colour
- Grey
- Product Type
- High Current Connector
- Number of Levels
- 2
- Series
- HV M6/2
- Voltage
- 1000V
- Minimum Wire Size AWG
- 14AWG
- Cable CSA
- 2.5, 35mm²
- Maximum Wire Size AWG
- 2AWG
- Fused
- Yes
- Pitch
- 16mm
- Termination Type
- Push-in
- Minimum Operating Temperature
- 60°C
- Terminal Block Current
- 125A
- Maximum Operating Temperature
- 110°C
- Hazardous Area Certification
- No
- Standards/Approvals
- cULus Recognised, CSA, NF F61-017, IEC 60947-7-1
