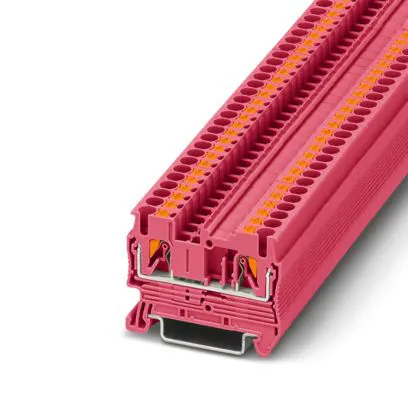

Phoenix Contact 1233142 PT Series Feed Through Terminal Block Pink, 2.5mm², 1-Level, Push-in, UKCA-EX, IECEx, EAC Ex,

ข้อมูลจำเพาะทางเทคนิค Phoenix Contact 1233142

Phoenix Contact 1233142

Colour

Pink

Product Type

Feed Through Terminal Block

Number of Levels

1

Number of Positions

1

Voltage

80V

Series

PT

Cable CSA

2.5mm²

Minimum Wire Size AWG

26AWG

Maximum Wire Size AWG

12AWG

Pitch

5.2mm

Terminal Block Current

24A

Termination Type

Push-in

Minimum Operating Temperature

60°C

Maximum Operating Temperature

110°C

Hazardous Area Certification

UKCA-EX, IECEx, EAC Ex, ATEX

Standards/Approvals

cUL, CCC, BV, ABS, DNV, DIN EN 45545-2, cULus, CSA, VDE, UL 94 V0, UL, UKCA-EX, NK, NFPA 130, LR, IECEE CB Scheme, IEC 60947-7-1, EAC
