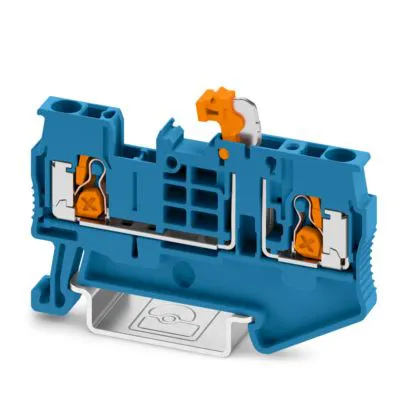

Phoenix Contact 1462717 XT Series Knife Disconnect Terminal Block Blue, 2.5mm², 1-Level, Push-in

ข้อมูลจำเพาะทางเทคนิค Phoenix Contact 1462717

Phoenix Contact 1462717

Product Type

Knife Disconnect Terminal Block

Colour

Blue

Sub Type

Knife Disconnect Terminal Block

Number of Positions

1

Number of Levels

1

Voltage

50V

Series

XT

Minimum Wire Size AWG

20AWG

Cable CSA

2.5mm²

Maximum Wire Size AWG

12AWG

Fused

No

Pitch

5.2mm

Terminal Block Current

20A

Termination Type

Push-in

Minimum Operating Temperature

60°C

Maximum Operating Temperature

110°C

Hazardous Area Certification

No

Standards/Approvals

UL 94 V0, NFPA 130 (SMP 800C), NFPA 130 (ASTM E 662), NFPA 130 (ASTM E 162), IEC 60947-7-1, DIN EN 50155 (VDE 0115-200):2022-06, DIN EN 45545-2, cULus Recognised Approval ID: E60425, CSA Approval ID: 2030668
