ข้อมูลจำเพาะทางเทคนิค Phoenix Contact 1700040

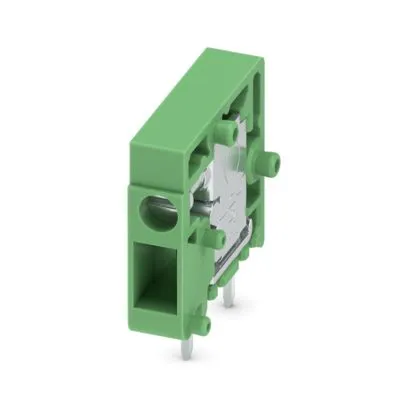

Phoenix Contact 1700040
- Number of Contacts
- 1
- Product Type
- PCB Terminal Block
- Pitch
- 5mm
- Current
- 24A
- Number of Rows
- 1
- Mount Type
- Wave Soldering Mount
- Housing Material
- Polyamide
- Minimum Wire Size mm²
- 0.2mm²
- Maximum Wire Size mm²
- 2.5mm²
- Minimum Wire Size AWG
- 24AWG
- Maximum Wire Size AWG
- 14AWG
- Orientation
- 0°
- Wire Connection Method
- Screw
- Colour
- Green
- Voltage
- 40V
- Length
- 19.5mm
- Width
- 7.5mm
- Standards/Approvals
- CSA, cULus, DNV GL
