ข้อมูลจำเพาะทางเทคนิค Phoenix Contact 1703084

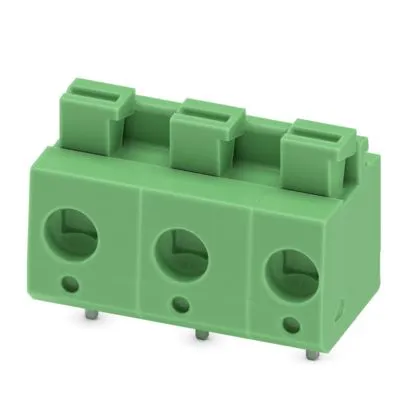

Phoenix Contact 1703084
- Product Type
- PCB Terminal Block
- Number of Contacts
- 3
- Pitch
- 7.5mm
- Number of Rows
- 1
- Current
- 16A
- Housing Material
- Polyamide
- Mount Type
- Wave Soldering Mount
- Minimum Wire Size mm²
- 0.14mm²
- Maximum Wire Size mm²
- 2.5mm²
- Minimum Wire Size AWG
- 26AWG
- Maximum Wire Size AWG
- 14AWG
- Orientation
- 0°
- Wire Connection Method
- Push-in
- Colour
- Green
- Voltage
- 63V
- Width
- 2mm
- Length
- 10.5mm
- Standards/Approvals
- cULus Recognised, VDE
