ข้อมูลจำเพาะทางเทคนิค Phoenix Contact 1703483

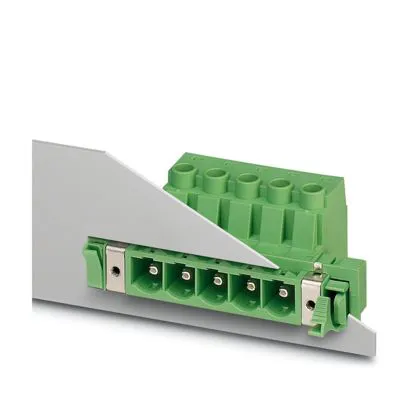

Phoenix Contact 1703483
- Product Type
- Pluggable Terminal Block Headers & Socket
- Number of Contacts
- 5
- Pitch
- 10.6mm
- Current
- 76A
- Number of Rows
- 2
- Mount Type
- Direct
- Housing Material
- Polyamide
- Connector Gender
- Male
- Orientation
- 0°
- Colour
- Green
- Termination Type
- Screw
- Contact Gender
- Male
- Voltage
- 1000V
- Length
- 44.1mm
- Series
- DFK-PC 16/-STF
- Standards/Approvals
- IEC 60512-13-5:2006-02, cULus Recognised Approval ID:E60425-20040202, IEC 61984, IEC 60664-1:2007-04, IEC 60512-1-1:2002-02, EN 60695-10-2, EN 60695-2-13, UL 94 V0, IEC 60068-2-70:1995-12, EN 60695-2-12, IEC 60999-1:1999-11, IEC 60512-5-1:2002-02, IEC 60112, IEC 60512-1-2:2002-02, ISO 6988:1985-02, VDE ID:40055586, IEC 60512-3-1:2002-02
- Width
- 86.16mm
