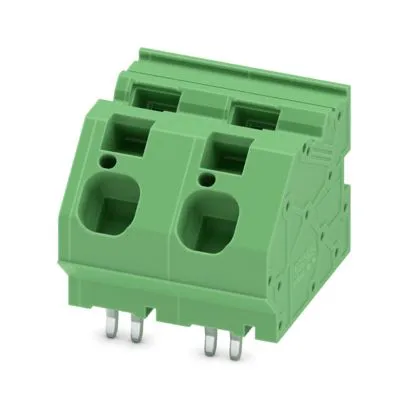

Phoenix Contact 1739295 ZFKDSA Series PCB Terminal Block, 2-Contact, 15 mm Pitch, Wave Soldering Mount, 1 Row

ข้อมูลจำเพาะทางเทคนิค Phoenix Contact 1739295

Phoenix Contact 1739295

Number of Contacts

2

Product Type

PCB Terminal Block

Pitch

15mm

Current

76A

Number of Rows

1

Minimum Wire Size mm²

0.2mm²

Mount Type

Wave Soldering Mount

Housing Material

Polyamide

Maximum Wire Size mm²

16mm²

Minimum Wire Size AWG

24AWG

Maximum Wire Size AWG

6AWG

Orientation

45°

Colour

Green

Wire Connection Method

Spring Cage

Voltage

1000V

Series

ZFKDSA

Standards/Approvals

UL 94 V0, IEC 60998-2-2:1991-10, IEC 60998-2-1:1990-04, IEC 60664-1:2007-04, IEC 60112, EN 60695-2-13, EN 60695-2-12, EN 60695-10-2

Width

30mm

Length

33.4mm
