ข้อมูลจำเพาะทางเทคนิค Phoenix Contact 1751390

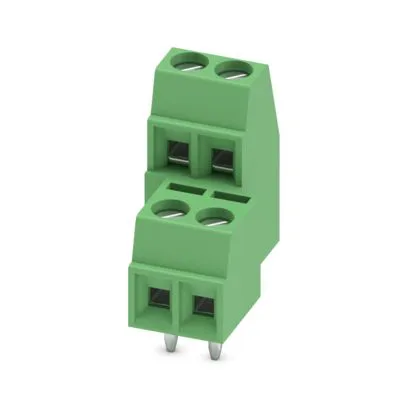

Phoenix Contact 1751390
- Number of Contacts
- 4
- Product Type
- PCB Terminal Block
- Pitch
- 3.5mm
- Current
- 8A
- Number of Rows
- 2
- Minimum Wire Size mm²
- 0.14mm²
- Housing Material
- Polyamide
- Mount Type
- Wave Soldering Mount
- Maximum Wire Size mm²
- 1.5mm²
- Minimum Wire Size AWG
- 26AWG
- Maximum Wire Size AWG
- 16AWG
- Orientation
- 0°
- Wire Connection Method
- Screw Connection with Tension Sleeve
- Colour
- Green
- Voltage
- 20V
- Length
- 16.3mm
- Standards/Approvals
- CSA Approval ID: 13631, cULus Recognised Approval ID: E60425-19770427, EN 60695-10-2, EN 60695-2-12, EN 60695-2-13, IEC 60512-3-1:2002-02, IEC 60947-1:2007-06 + A1:2010-12 + A2:2014-09, IEC 60947-7-4:2019-01, IEC 60999-1:1999-11, UL 94 V0, VDE approval of drawings Approval ID: 40055535
- Width
- 9.25mm
- Series
- MKKDS 1
