ข้อมูลจำเพาะทางเทคนิค Phoenix Contact 1765894

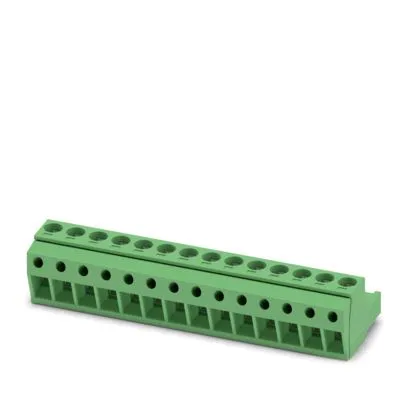

Phoenix Contact 1765894
- Product Type
- PCB Connector
- Number of Contacts
- 14
- Pitch
- 5mm
- Number of Rows
- 1
- Current
- 12A
- Housing Material
- Polyamide
- Connector Gender
- Female
- Colour
- Green
- Termination Type
- Screw
- Voltage
- 320V
- Contact Gender
- Female
- Depth
- 15mm
- Length
- 21.3mm
- Width
- 70mm
- Series
- MSTBP
- Standards/Approvals
- IEC 61984, IEC 60999-1:1999-11, IEC 60512-13-2:2006-02, IEC 60068-2-70:1995-12, IEC 60512-13-5:2006-02, IEC 60512-1-1:2002-02, IEC 60512-1-2:2002-02, IEC 60068-2-6:2007-12, IEC 60512-9-1:2010-03, ISO 6988:1985-02, IEC 60512-5-1:2002-02, IEC 60512-3-1:2002-02, IEC 60664-1:2007-04, UL 94 V0, EN 60695-2-12, EN 60695-2-13, EN 60695-10-2, CSA Approval ID: 13631-2585951, cULus Recognised Approval ID: E60425-19931011, EU RoHS, CHINA RoHS, EU REACH
