ข้อมูลจำเพาะทางเทคนิค Phoenix Contact 1777545

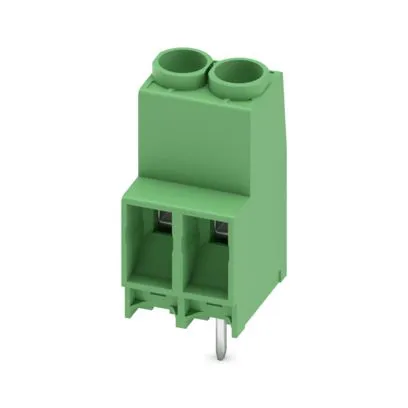

Phoenix Contact 1777545
- Product Type
- PCB Terminal Block
- Number of Contacts
- 2
- Pitch
- 6.35mm
- Current
- 41A
- Number of Rows
- 1
- Mount Type
- Wave Soldering Mount
- Minimum Wire Size mm²
- 0.2mm²
- Housing Material
- Polyamide
- Maximum Wire Size mm²
- 6mm²
- Minimum Wire Size AWG
- 24AWG
- Maximum Wire Size AWG
- 10AWG
- Orientation
- 0°
- Colour
- Green
- Wire Connection Method
- Screw Connection with Tension Sleeve
- Voltage
- 1000V
- Series
- MKDS 5 N HV
- Width
- 12.7mm
- Standards/Approvals
- IEC 60998-1:2002-12, IEC 60947-7-4:2013-08, IEC 60998-2-1:2002-12, UL 94 V0, VDE approval, cULus Recognised, EN 60695-2-12, EN 60695-2-13
- Length
- 15.85mm
