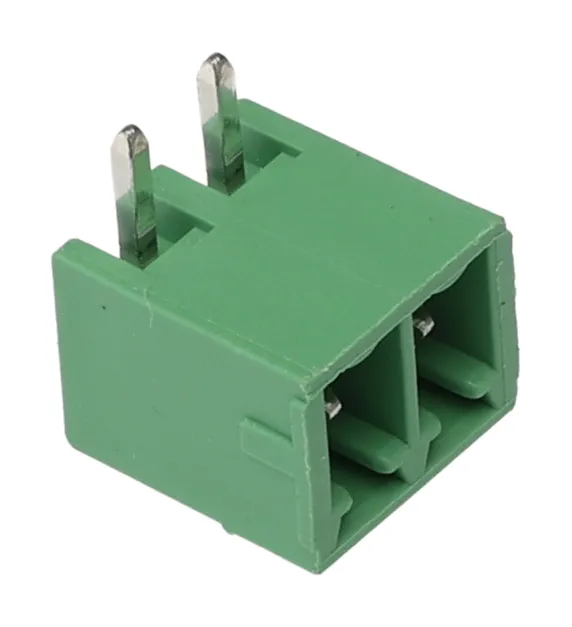

Phoenix Contact 1803277 MC 1.5/ 2-G-3.81 Series Pluggable Terminal Block, 2-Contact, 3.81 mm Pitch, 1 Row, 1803277

ข้อมูลจำเพาะทางเทคนิค Phoenix Contact 1803277

Phoenix Contact 1803277

Product Type

Pluggable Terminal Block

Number of Contacts

2

Pitch

3.81mm

Number of Rows

1

Current

8A

Housing Material

Polybutylene Terephthalate

Maximum Wire Size mm²

1.5mm²

Connector Gender

Male

Orientation

Right Angle

Colour

Green

Wire Connection Method

Solder

Voltage

300V

Series

MC 1.5/ 2-G-3.81

Standards/Approvals

cULus, CSA, CHINA RoHS, EU RoHS, EU REACH SVHC

Width

9.01mm

Length

9.2mm

Depth

10.65mm

3D Model

https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=14109&DisplayLogo=False
