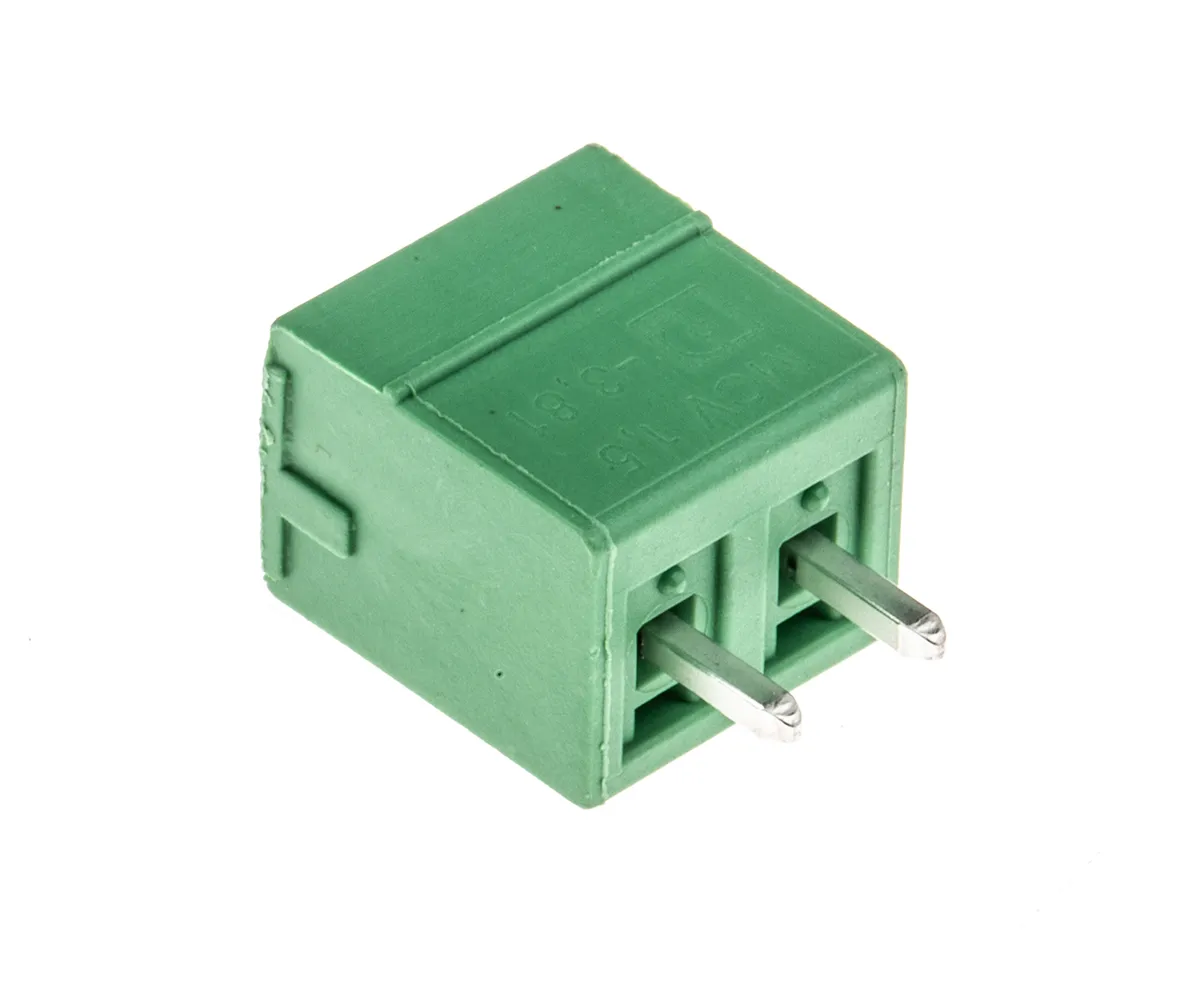

Phoenix Contact 1803426 MCV 1.5/2-G-3.81 Series Pluggable Terminal Block, 2-Contact, 3.81 mm Pitch, 1 Row, 1803426

ข้อมูลจำเพาะทางเทคนิค Phoenix Contact 1803426

Phoenix Contact 1803426

Product Type

Pluggable Terminal Block

Number of Contacts

2

Pitch

3.81mm

Current

8A

Number of Rows

1

Minimum Wire Size mm²

1.5mm²

Housing Material

Polybutylene Terephthalate

Connector Gender

Male

Maximum Wire Size mm²

1.5mm²

Minimum Wire Size AWG

16AWG

Maximum Wire Size AWG

16AWG

Orientation

Straight

Wire Connection Method

Solder

Colour

Green

Voltage

300V

Series

MCV 1.5/2-G-3.81

Width

9.01mm

Standards/Approvals

RoHS

Length

7.25mm

Depth

12.6mm
