ข้อมูลจำเพาะทางเทคนิค Phoenix Contact 1808938

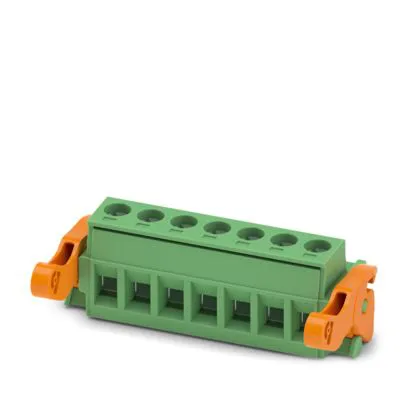

Phoenix Contact 1808938
- Product Type
- PCB Connector
- Number of Contacts
- 7
- Pitch
- 5.08mm
- Current
- 12A
- Number of Rows
- 1
- Mount Type
- Locking Jack
- Housing Material
- Polyamide
- Connector Gender
- Female
- Termination Type
- Screw
- Colour
- Green
- Voltage
- 320V
- Length
- 29.3mm
- Series
- MSTB
- Depth
- 15mm
- Standards/Approvals
- IEC 60999-1:1999-11, IEC 60512-13-2:2006-02, IEC 60068-2-70:1995-12, IEC 60512-13-5:2006-02, IEC 60512-1-1:2002-02, IEC 60512-1-2:2002-02, IEC 60068-2-6:2007-12, IEC 60512-9-1:2010-03, ISO 6988:1985-02, IEC 60664-1:2007-04, UL 94 V0, EN 60695-2-12, EN 60695-2-13, cULus Recognised Approval ID: E60425-19931011, VDE approval of drawings Approval ID: 40050694
- Width
- 44.68mm
