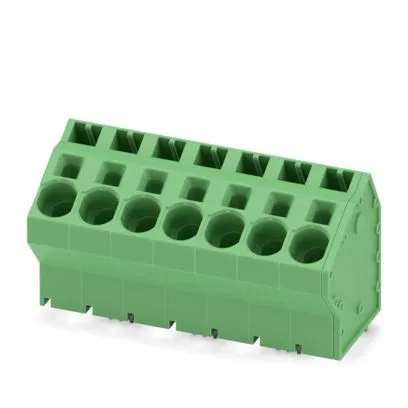

Phoenix Contact 1819257 SPTA 16 Series PCB Terminal Block, 7-Contact, 10 mm Pitch, Wave Soldering Mount, 1 Row

ข้อมูลจำเพาะทางเทคนิค Phoenix Contact 1819257

Phoenix Contact 1819257

Product Type

PCB Terminal Block

Number of Contacts

7

Pitch

10mm

Current

76A

Number of Rows

1

Mount Type

Wave Soldering Mount

Minimum Wire Size mm²

0.75mm²

Housing Material

Polyamide

Maximum Wire Size mm²

16mm²

Minimum Wire Size AWG

18AWG

Maximum Wire Size AWG

4AWG

Orientation

60°

Colour

Green

Wire Connection Method

Push-in Spring

Voltage

1000V

Standards/Approvals

IEC 60999-1:1999-11, VDE, UL 94 V0, cULus, IEC 60512-3-1:2002-02, IEC 60947-1:2007-06 + A1:2010-12 + A2:2014-09, IEC 60947-7-4:2013-08

Length

32.7mm

Width

70mm

Series

SPTA 16
