ข้อมูลจำเพาะทางเทคนิค RS PRO 733-5160

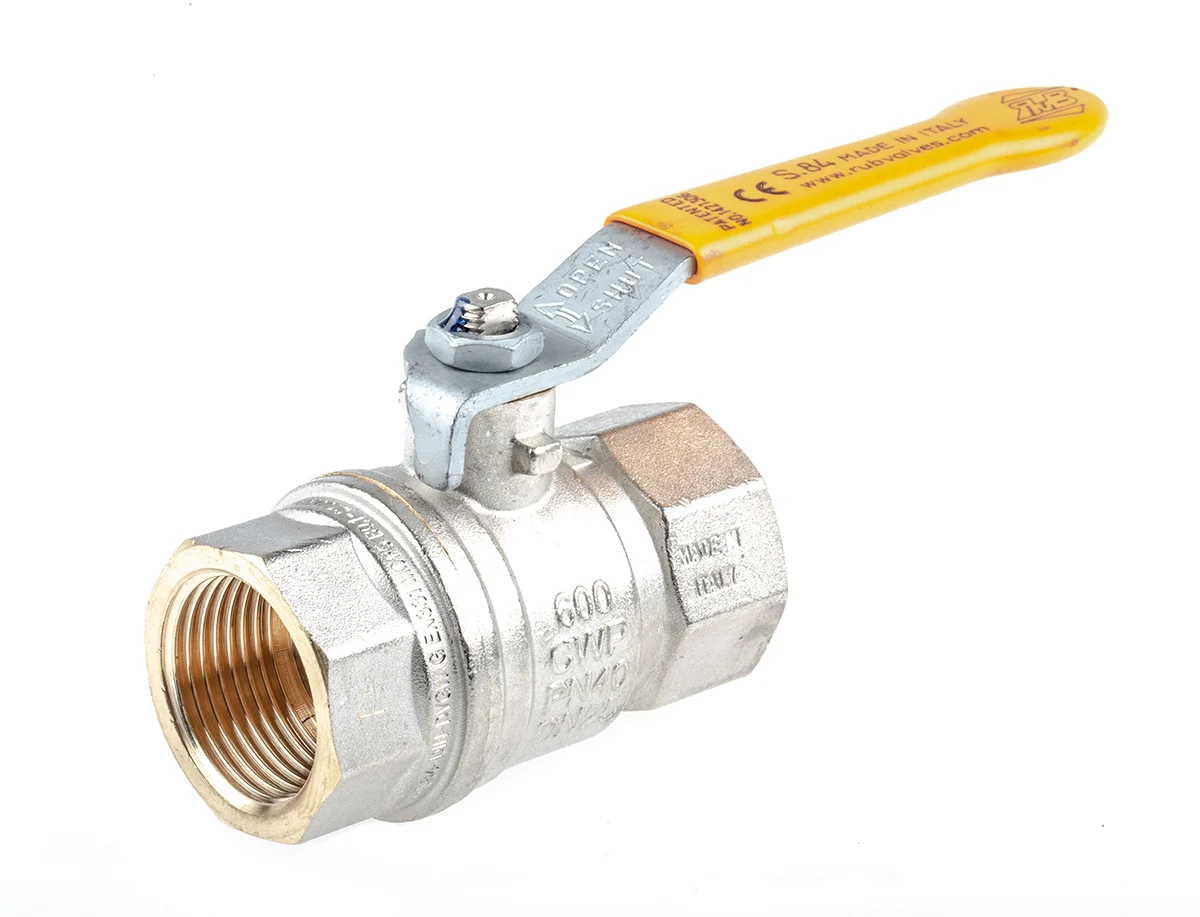

RS PRO 733-5160
- Outlet Connection Type
- Threaded
- Valve Type
- Ball
- Product Type
- Ball Valve
- Inlet Connection Type
- Threaded
- Inlet Port Size
- 1 in
- Outlet Port Size
- 1 in
- Body Material
- Brass
- Inlet Thread Standard
- BSPP
- Inlet Port Gender
- Female
- Outlet Port Gender
- Female
- Outlet Thread Standard
- BSPP
- Minimum Operating Temperature
- -40°C
- Handle Material
- Polyvinyl Chloride Coated Steel
- Maximum Operating Temperature
- 170°C
- Standards/Approvals
- DIN-DVGW (Germany) - MOP 5 B 0, BSI Group (United Kingdom), SVGW (Switzerland), DIN 3357, Factory Mutual (United States), RoHS (EU), GOST-R (Russia), EAC - Declaration of conformity (Russia, Kazakhstan, Belarus), ARGB-KVBG (Belgium) - MOP 5 bar for outside building gas installation, 1, The Australian Gas Association (Australia), EN 10226-1, PED directive 2014/68/UE module B+D by ICIM (0425)
- Maximum Operating Pressure
- 40 bar
