ข้อมูลจำเพาะทางเทคนิค RS PRO 733-5164

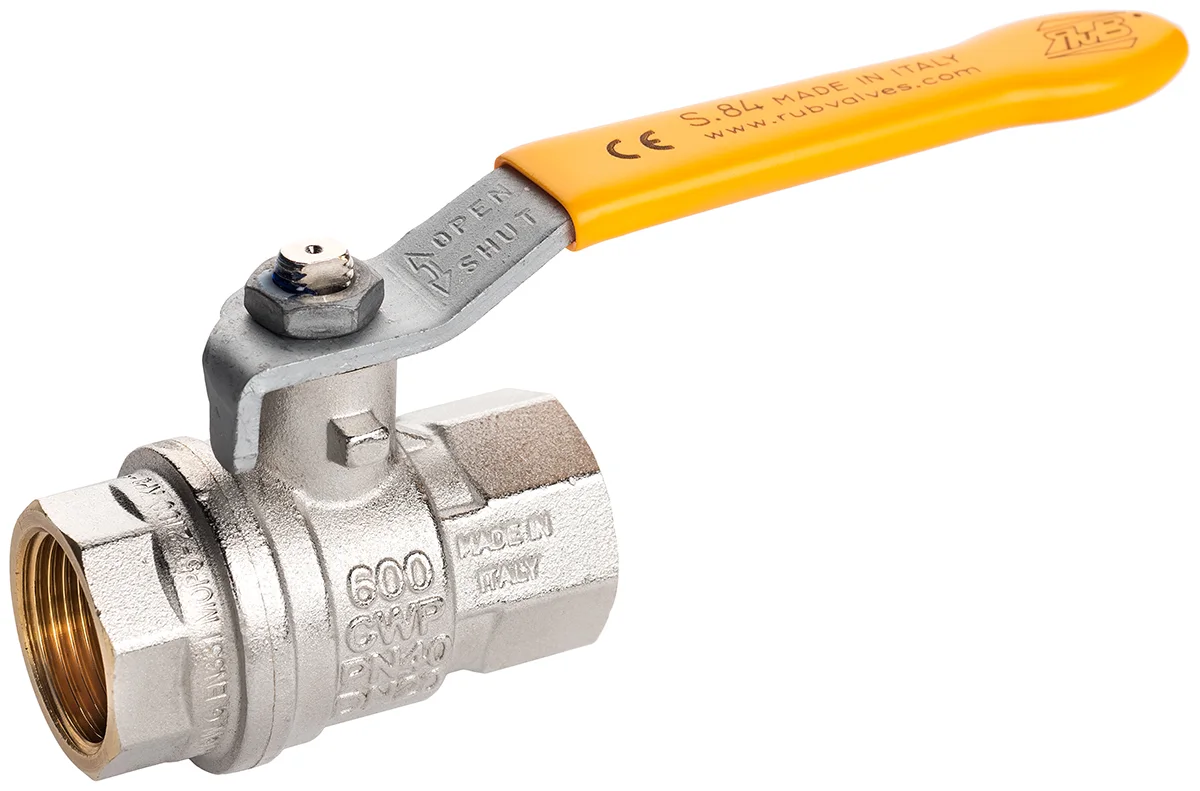

RS PRO 733-5164
- Outlet Connection Type
- Threaded
- Valve Type
- 2-Way, Ball
- Product Type
- Ball Valve
- Inlet Connection Type
- Threaded
- Inlet Port Size
- 1-1/4 in
- Outlet Port Size
- 1-1/4 in
- Body Material
- Brass
- Inlet Thread Standard
- BSPP
- Inlet Port Gender
- Female
- Outlet Thread Standard
- BSPP
- Outlet Port Gender
- Female
- Minimum Operating Temperature
- -40°C
- Maximum Operating Temperature
- 170°C
- Handle Material
- Polyvinyl Chloride Coated Steel
- Standards/Approvals
- BSI Group (United Kingdom), RoHS (EU), DIN-DVGW (Germany) - MOP 5 B 0, 1, EAC - Declaration ofity (Russia, Kazakhstan, Belarus), GOST-R (Russia), The Australian Gas Association (Australia), SVGW (Switzerland), PED Directive Assessment according to Pressure Equipment Directive 2014/68/UE module B+D by ICIM (0425), Factory Mutual (United States), ARGB-KVBG (Belgium) - MOP 5 bar for outside building gas installation
- Maximum Operating Pressure
- 40 bar
