ข้อมูลจำเพาะทางเทคนิค RS PRO 733-5167

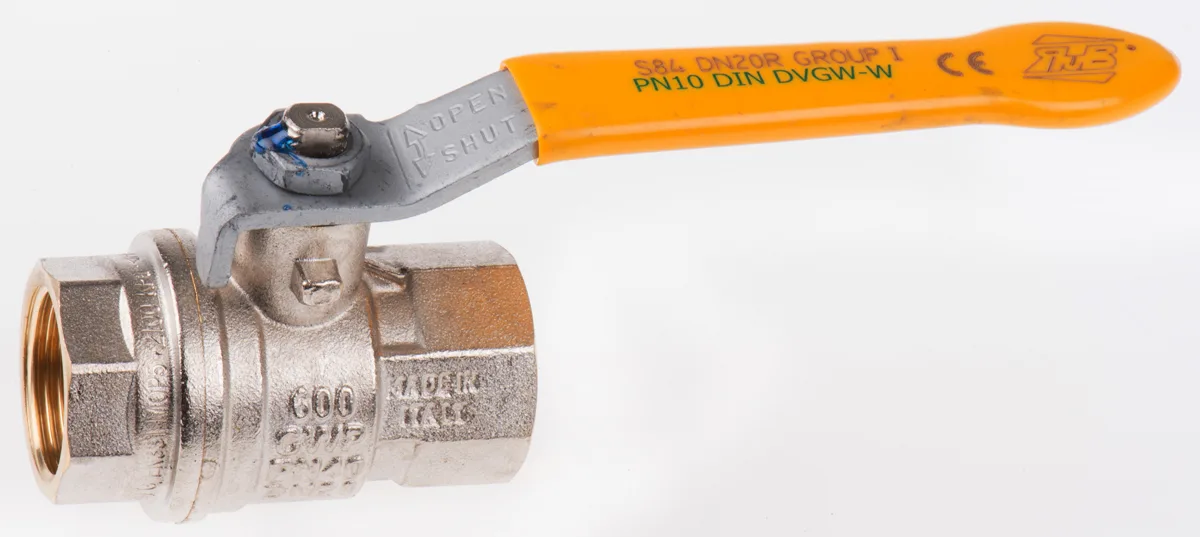

RS PRO 733-5167
- Inlet Connection Type
- Threaded
- Product Type
- Ball Valve
- Outlet Connection Type
- Threaded
- Valve Type
- 2-Way, Ball
- Inlet Port Size
- 3/4 in
- Outlet Port Size
- 3/4 in
- Body Material
- Brass
- Inlet Thread Standard
- BSPP
- Inlet Port Gender
- Female
- Outlet Port Gender
- Female
- Outlet Thread Standard
- BSPP
- Minimum Operating Temperature
- -40°C
- Handle Material
- Polyvinyl Chloride Coated Steel
- Maximum Operating Temperature
- 170°C
- Standards/Approvals
- The Australian Gas Association (Australia), BSI Group (United Kingdom), DIN-DVGW (Germany) - MOP 5 B 0, 1, EAC - Declaration ofity (Russia, Kazakhstan, Belarus), SVGW (Switzerland), GOST-R (Russia), ARGB-KVBG (Belgium) - MOP 5 bar for outside building gas installation, PED Directive Assessment according to Pressure Equipment Directive 2014/68/UE module B+D by ICIM (0425), RoHS (EU), Factory Mutual (United States)
- Maximum Operating Pressure
- 40 bar
