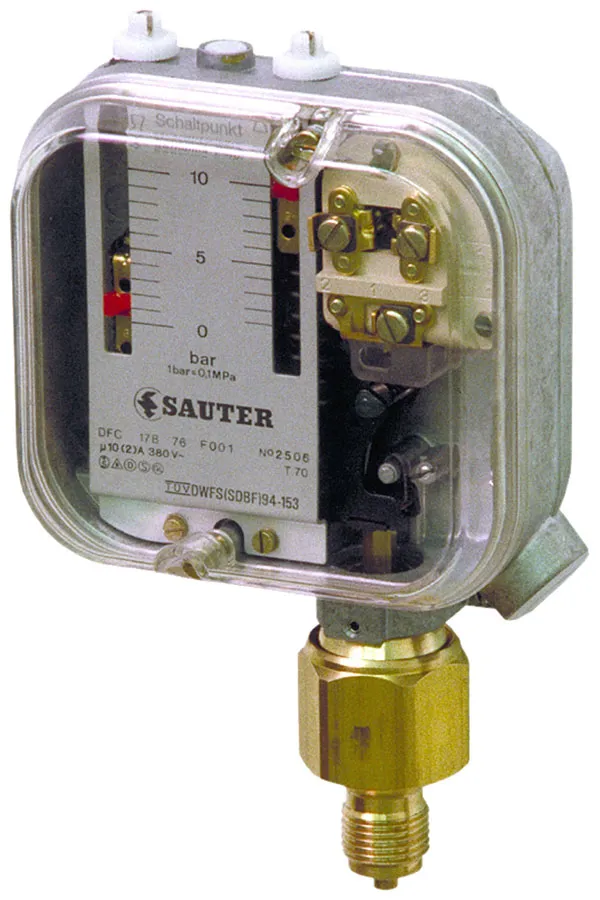

SAUTER REGULATION DFC27B46F002 Pressure Sensor, IP44 21 bar 50V 110 °C

ข้อมูลจำเพาะทางเทคนิค SAUTER REGULATION DFC27B46F002

SAUTER REGULATION DFC27B46F002

Suitable Medias

Gas

Product Type

Pressure Sensor

Switch Output

SPCO

Minimum Operating Pressure

1bar

Connection Thread Standard

G

Port Size

G 1/2

Voltage

50V

Mount Type

Wall

IP Rating

IP44

Maximum Operating Temperature

110°C

Maximum Operating Pressure

21 bar

Minimum Operating Temperature

-20°C

Series

DFC 27B

Standards/Approvals

Kat. IV, VdTรœV-Merkblatt Druck 100 Blatt 1, CE, EN 60730-1, TรœV, EN 12953-9, EN 60529, EN 61000-6-1, RoHS-RL 2015/863/EU, EN 61000-6-2, EN IEC 63000:2018, EN 60730-2-6, EN 61000-6-4, DGRL 2014/68/EU, RoHS-RL 2011/65/EU, IEC 60730, PESR-2016 (UKCA), UKCA, EN 61000-6-3, EN 12952-11, EN ISO12100:2018

Electrical Connection Type

Cable
