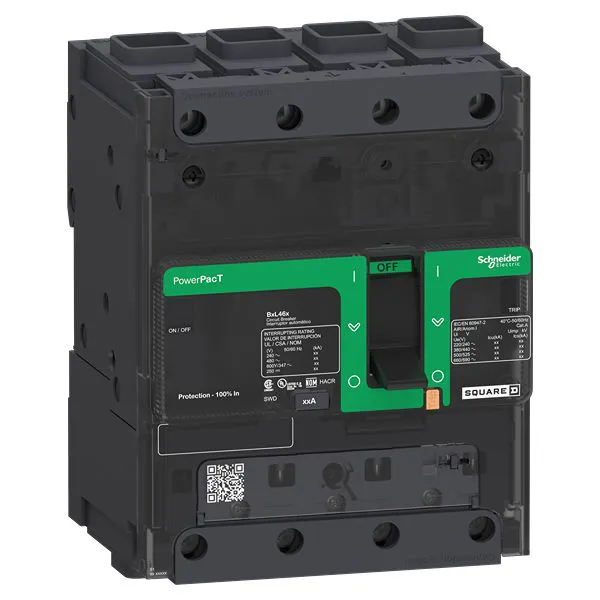

Schneider Electric BGF46125 PowerPact, PowerPact Molded Case Circuit Breaker 4-Pole 125A, Breaking Capacity 18 kA, Clip-on

ข้อมูลจำเพาะทางเทคนิค Schneider Electric BGF46125

Schneider Electric BGF46125

Range

PowerPact

Product Type

Molded Case Circuit Breaker

Series

BG/F

Number of Poles

4

Current Rating

125A

Breaking Capacity

18kA

Rated AC Voltage

525V ac

Mount Type

Clip-on

Standards/Approvals

CSA C22.2 No 5 EN IEC 60947-5-1 UL 489 NMX J-266 EN IEC 60947-2 GB 14048.2 NEMA AB1

Depth

80mm

Height

137mm

Width

108mm

Tripping Mechanism

Acetic Acid

Tripping Characteristics

Thermomagnetic

3D Model

https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=0341129&DisplayLogo=False
