ข้อมูลจำเพาะทางเทคนิค Siemens 3VA5560-6EC46-2AA0

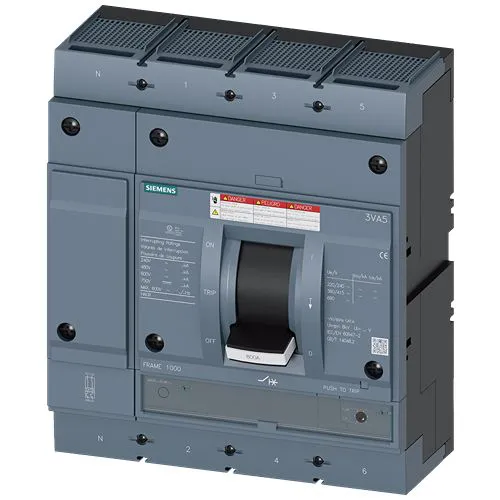

Siemens 3VA5560-6EC46-2AA0
- Product Type
- Molded Case Circuit Breaker
- Range
- SENTRON
- Series
- 3VA5
- Number of Poles
- 4
- Current Rating
- 600A
- Breaking Capacity
- 65kA
- Mount Type
- Fixed
- Rated AC Voltage
- 690V ac
- Rated DC Voltage
- 1000V dc
- Terminal Type
- Circular Conductor
- Standards/Approvals
- CCC, EAC, IEC 60947, IEC 81346-2, RoHS, UKCA, UL, UL 489, CE
- Width
- 280mm
- Height
- 328mm
- Depth
- 120mm
- Tripping Characteristics
- Overload Protection, Short Circuit Protection
- Tripping Mechanism
- FTAM, TM230
