ข้อมูลจำเพาะทางเทคนิค Siemens 3VA5560-7EC36-1AA0

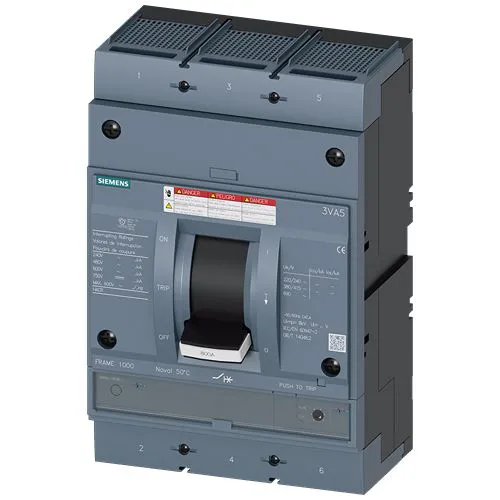

Siemens 3VA5560-7EC36-1AA0
- Product Type
- Molded Case Circuit Breaker
- Range
- SENTRON
- Series
- 3VA5
- Number of Poles
- 3
- Current Rating
- 600A
- Breaking Capacity
- 100kA
- Mount Type
- Fixed
- Rated AC Voltage
- 690V ac
- Terminal Type
- Circular Conductor
- Height
- 328mm
- Width
- 210mm
- Standards/Approvals
- UKCA, IEC 81346-2, IEC 60947, EAC, CE, CCC, UL 489, UL, RoHS
- Depth
- 120mm
- Tripping Characteristics
- Short Circuit Protection, Overload Protection
- Tripping Mechanism
- TM230, FTAM
