ข้อมูลจำเพาะทางเทคนิค Siemens 3VA5560-7EC62-0AA0

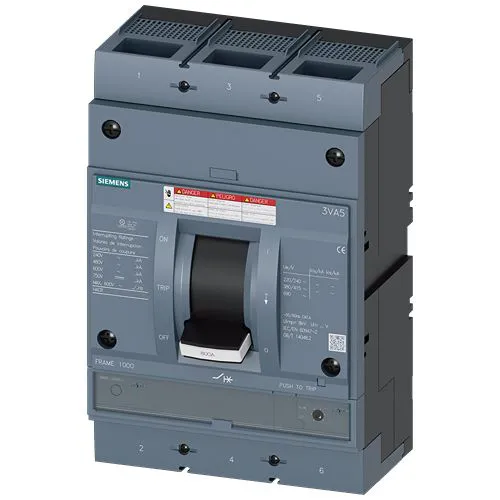

Siemens 3VA5560-7EC62-0AA0
- Range
- SENTRON
- Product Type
- Molded Case Circuit Breaker
- Series
- 3VA5
- Number of Poles
- 2
- Current Rating
- 600A
- Breaking Capacity
- 100kA
- Rated AC Voltage
- 690V ac
- Mount Type
- Fixed
- Rated DC Voltage
- 500V dc
- Depth
- 120mm
- Width
- 280mm
- Standards/Approvals
- CE, CCC, EAC, IEC 60947, IEC 81346-2, RoHS, UKCA, UL, UL 489
- Height
- 328mm
- Tripping Characteristics
- Overload Protection, Short Circuit Protection
- Tripping Mechanism
- FTAM, TM230
