ข้อมูลจำเพาะทางเทคนิค Siemens 3VA6115-8KM31-0AA0

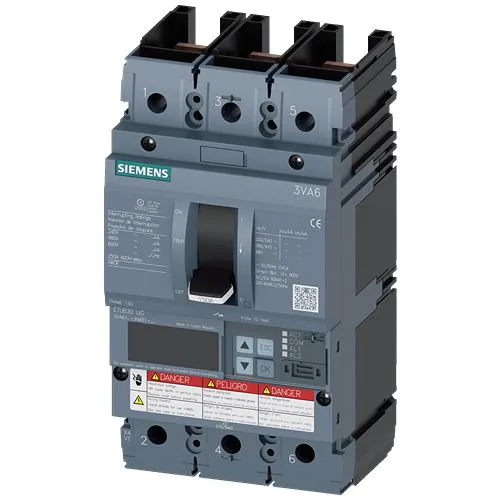

Siemens 3VA6115-8KM31-0AA0
- Range
- SENTRON
- Product Type
- Molded Case Circuit Breaker
- Series
- 3VA6
- Number of Poles
- 3
- Current Rating
- 150A
- Breaking Capacity
- 150kA
- Mount Type
- Fixed
- Rated AC Voltage
- 690V ac
- Depth
- 86mm
- Width
- 105mm
- Standards/Approvals
- HACR Type, IEC 60947, UL 489
- Height
- 198mm
- Better World Claim
- Concentrated or Compact Solution, Extended Product Life
- Better World Product
- Yes
- Tripping Mechanism
- ETU830
- Tripping Characteristics
- Type I, Type L, Type G
