ข้อมูลจำเพาะทางเทคนิค SMC ASB2201-G02-08

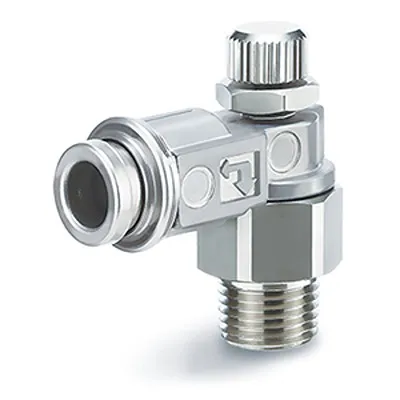

SMC ASB2201-G02-08
- Outlet Connection Type
- Tube One-Touch Fitting
- Inlet Connection Type
- Threaded
- Product Type
- Speed Controller
- Sub Type
- Speed Controller
- Inlet Connection Size
- 1/4 in G
- Outlet Connection Size
- 8 mm
- Series
- ASB
- Inlet Port Gender
- Male
- Maximum Operating Pressure
- 1 Mpa
- Minimum Operating Temperature
- -5°C
- Outlet Port Gender
- Female
- Material
- Zinc Alloy, Brass
- Maximum Operating Temperature
- 60°C
- Standards/Approvals
- ISO 4413, ISO 4414, IEC 60204-1, ISO 10218-1, RoHS
- Minimum Operating Pressure
- 0.1MPa
- Hazardous Area Certification
- No
- Proof Pressure
- 1.5MPa
- Model Number
- ASB2201-G02-08
