ข้อมูลจำเพาะทางเทคนิค SMC CDQSB12-10DC

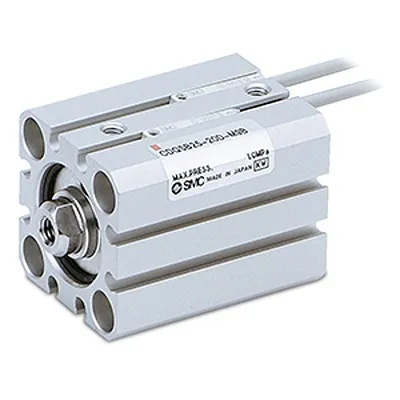

SMC CDQSB12-10DC
- Product Type
- Pneumatic Piston Rod Cylinder
- Series
- CQS
- Model Number
- CDQSB12-10DC
- Action Type
- Double Acting
- Bore Diameter
- 12mm
- Mount Type
- Through Hole
- Cushioning Type
- Elastic
- Body Material
- Aluminium Alloy
- Stroke Length
- 10mm
- Length
- 25mm
- Maximum Operating Pressure
- 1 Mpa
- Piston Rod Thread Size
- M5 x 0.8
- Maximum Piston Speed
- 500mm/s
- Rod Type
- Single
- Piston Rod Gender
- Female
- Minimum Operating Temperature
- -10°C
- Maximum Operating Temperature
- 60°C
- Standards/Approvals
- JIS Symbol, RoHS
- Height
- 25mm
