ข้อมูลจำเพาะทางเทคนิค SMC CP96SDB40-20C

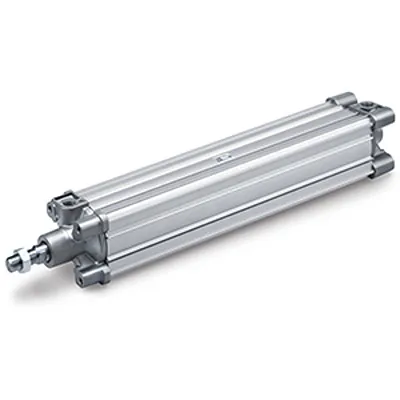

SMC CP96SDB40-20C
- Series
- CP96
- Product Type
- Pneumatic Piston Rod Cylinder
- Model Number
- CP96SDB40-20C
- Bore Diameter
- 40mm
- Action Type
- Double Acting
- Mount Type
- Basic
- Cushioning Type
- Air, Rubber Bumper
- Body Material
- Aluminium Alloy, Die Cast Aluminium
- Length
- 163mm
- Stroke Length
- 20mm
- Maximum Operating Pressure
- 1 Mpa
- Minimum Operating Temperature
- -10°C
- Maximum Piston Speed
- 1000mm/s
- Piston Rod Thread Size
- M12 x 1.25
- Piston Rod Thread Standard
- M
- Piston Rod Gender
- Male
- Rod Type
- Single
- Maximum Operating Temperature
- 70°C
- Standards/Approvals
- ISO 15552, RoHS
- Weight
- 732g
- Height
- 54mm
