ข้อมูลจำเพาะทางเทคนิค SMC JMGPM32-100

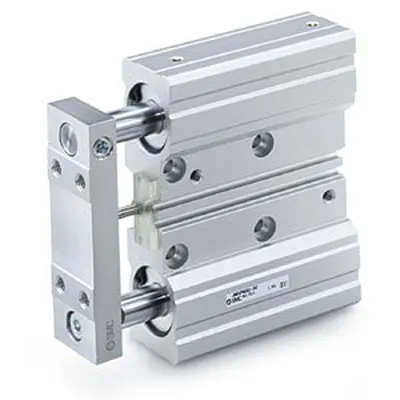

SMC JMGPM32-100
- Product Type
- Pneumatic Guided Cylinder
- Bore Diameter
- 32mm
- Series
- JMGP
- Action Type
- Double Acting
- Mount Type
- Switch
- Maximum Operating Pressure
- 0.7 Mpa
- Cushioning Type
- Rubber Cushioning at Both Ends
- Minimum Operating Temperature
- 5°C
- Piston Rod Thread Standard
- Metric
- Guide Type
- Slide Bearing
- Maximum Piston Speed
- 300mm/s
- Maximum Operating Temperature
- 60°C
- Weight
- 1.11kg
- Standards/Approvals
- RoHS
- Stroke Length
- 100mm
- Model Number
- JMGPM32-100
