ข้อมูลจำเพาะทางเทคนิค SMC MGPM25TF-400Z

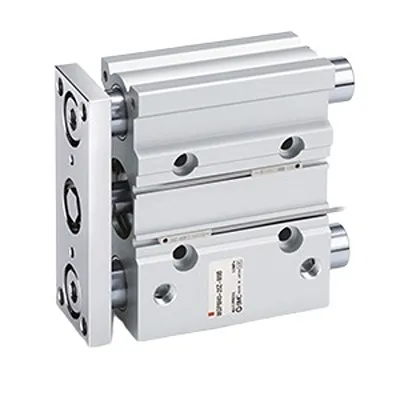

SMC MGPM25TF-400Z
- Product Type
- Guided Air Cylinders
- Bore Diameter
- 25mm
- Series
- MGP
- Action Type
- Double Acting
- Mount Type
- Bottom, Direct, Side, Top
- Maximum Operating Pressure
- 1 MPa
- Cushioning Type
- Rubber Bumper
- Body Material
- Aluminium Alloy
- Piston Rod Thread Standard
- Metric
- Piston Rod Thread Size
- M6 x 1.0
- Guide Type
- Slide Bearing
- Maximum Piston Speed
- 500mm/s
- Minimum Operating Temperature
- 10°C
- Rod Type
- Guide Rod
- Maximum Operating Temperature
- 60°C
- Height
- 42mm
- Width
- 93mm
- Standards/Approvals
- RoHS
- Weight
- 6.52kg
- Length
- 517mm
- Stroke Length
- 400mm
- Model Number
- MGPM25TF 400Z
