ข้อมูลจำเพาะทางเทคนิค SMC MGQM12-40

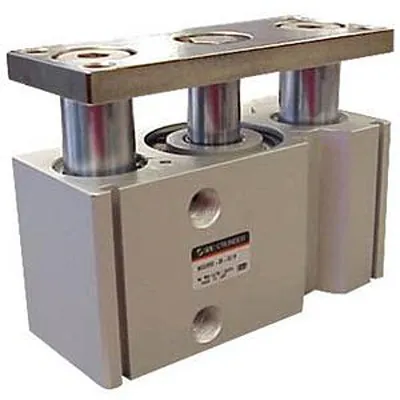

SMC MGQM12-40
- Product Type
- Pneumatic Guided Cylinder
- Bore Diameter
- 12mm
- Series
- MGQM
- Action Type
- Double Acting
- Mount Type
- Side, Bottom
- Maximum Operating Pressure
- 1 Mpa
- Body Material
- Aluminium Alloy
- Cushioning Type
- Rubber Cushioning at Both Ends
- Piston Rod Thread Standard
- Metric
- Guide Type
- Slide Bearing
- Maximum Piston Speed
- 500mm/s
- Minimum Operating Temperature
- -10°C
- Maximum Operating Temperature
- 60°C
- Standards/Approvals
- RoHS
- Weight
- 0.77lb
- Stroke Length
- 40mm
- Model Number
- MGQM12-40
