ข้อมูลจำเพาะทางเทคนิค SMC SQ2431N-51-C8-Q

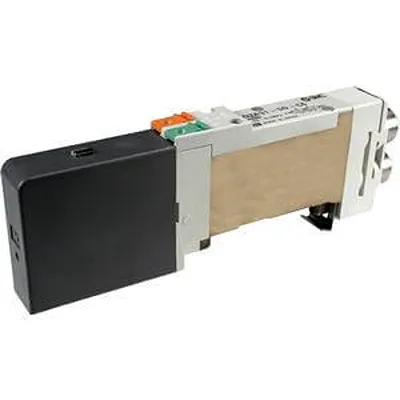

SMC SQ2431N-51-C8-Q
- Product Type
- Pneumatic Solenoid Valve
- Port Size
- 8 mm
- Connection Thread Standard
- Metric
- Actuation Type
- Solenoid
- Series
- SQ2000
- Voltage
- 24V dc
- Seal Material
- Rubber
- Mount Type
- DIN Rail
- Number of Ports
- 5
- Maximum Operating Pressure
- 0.7 Mpa
- Body Material
- Die Cast Zinc
- Valve Function
- 3 Position Exhaust Centre
- Minimum Operating Temperature
- -10°C
- Minimum Pilot Pressure
- 0.1MPa
- Maximum Operating Temperature
- 50°C
- Solenoid Power Consumption
- 0.95W
- Standards/Approvals
- CE, RoHS
- Hazardous Area Certification
- No
