ข้อมูลจำเพาะทางเทคนิค SMC SY5260-5LOU-C8-Q

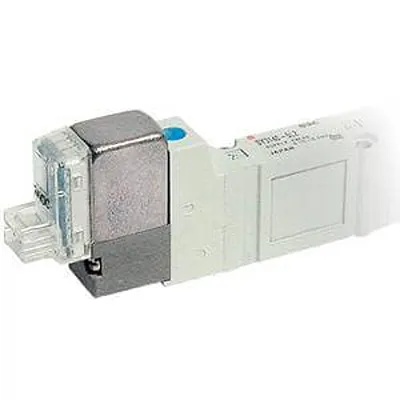

SMC SY5260-5LOU-C8-Q
- Product Type
- Pneumatic Solenoid Valve
- Port Size
- 8 mm
- Connection Thread Standard
- Rc
- Actuation Type
- Solenoid
- Seal Material
- Rubber
- Voltage
- 24V dc
- Series
- SY5000
- Mount Type
- DIN Rail
- Number of Ports
- 5
- Body Material
- Die Cast Aluminium
- Maximum Operating Pressure
- 1 Mpa
- Minimum Operating Temperature
- -10°C
- Maximum Pilot Pressure
- 0.7MPa
- Minimum Pilot Pressure
- 0.1MPa
- Valve Function
- 3 Position Double Check
- Solenoid Power Consumption
- 0.5W
- Maximum Operating Temperature
- 50°C
- Standards/Approvals
- RoHS, CE
- Hazardous Area Certification
- No
