ข้อมูลจำเพาะทางเทคนิค SMC VP546-5DZ1-M-S

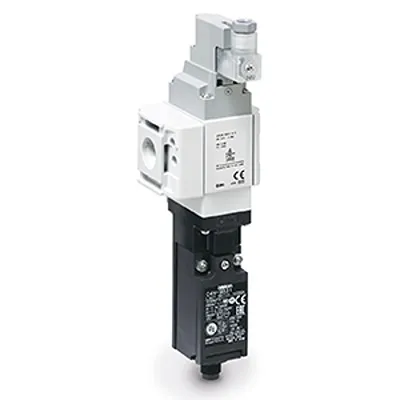

SMC VP546-5DZ1-M-S
- Product Type
- Pneumatic Solenoid Valve
- Port Type
- Rc
- Connection Thread Standard
- BSPT
- Actuation Type
- Solenoid/Air
- Series
- VP500
- Seal Material
- Rubber
- Voltage
- 24V dc
- Mount Type
- Base
- Number of Ports
- 3
- Body Material
- Die Cast Aluminium
- Maximum Operating Pressure
- 1 Mpa
- Valve Function
- Air Operated
- Port Gender
- Female
- Minimum Pilot Pressure
- 0.2MPa
- Minimum Operating Temperature
- -10°C
- Mount Pattern
- Manifold
- Maximum Flow Rate
- 8.8dm³/s
- Maximum Operating Temperature
- 50°C
- Solenoid Power Consumption
- 0.45W
- Standards/Approvals
- IP65 Enclosure, RoHS, DIN terminal meets EN 175301-803C
- Hazardous Area Certification
- No
- Number of Positions
- 2
- Electrical Connection Type
- DIN Terminal
