ข้อมูลจำเพาะทางเทคนิค SMC VP742-3YO1-04FA

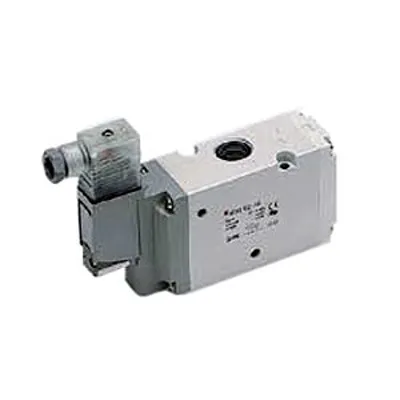

SMC VP742-3YO1-04FA
- Product Type
- Pneumatic Solenoid Valve
- Port Size
- 1/2 in
- Port Type
- Type G
- Connection Thread Standard
- BSP
- Actuation Type
- Solenoid
- Series
- VP700
- Voltage
- 110V ac
- Seal Material
- Elastic Rubber
- Mount Type
- In-Line, Base
- Number of Ports
- 3
- Body Material
- Aluminium
- Maximum Operating Pressure
- 1 Mpa
- Minimum Pilot Pressure
- 0.2MPa
- Valve Function
- Air Operated
- Mount Pattern
- Base
- Minimum Operating Temperature
- -10°C
- Maximum Pilot Pressure
- 1MPa
- Maximum Flow Rate
- 3707L/min
- Port Gender
- Female
- Maximum Operating Temperature
- 50°C
- Solenoid Power Consumption
- 0.55W
- Hazardous Area Certification
- No
- Standards/Approvals
- IP65 likely, RoHS, EN175301-803 DIN terminal
- Number of Positions
- 2
- Electrical Connection Type
- DIN Terminal
