ข้อมูลจำเพาะทางเทคนิค SMC VQ21M1-5YZB-C8-Q

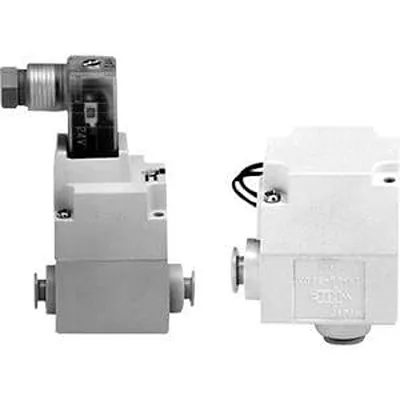

SMC VQ21M1-5YZB-C8-Q
- Product Type
- Pneumatic Solenoid Valve
- Port Size
- M5
- Port Type
- Threaded
- Connection Thread Standard
- M5 x 0.8
- Actuation Type
- Solenoid
- Solenoid Type
- Direct Acting
- Series
- VQ2000
- Voltage
- 24V dc
- Seal Material
- Nitrile Rubber (NBR)
- Mount Type
- Panel
- Number of Ports
- 5
- Body Material
- Aluminium
- Maximum Operating Pressure
- 1 Mpa
- Minimum Pilot Pressure
- 0.15MPa
- Maximum Pilot Pressure
- 0.7MPa
- Minimum Operating Temperature
- -10°C
- Mount Pattern
- Base
- Valve Function
- 2 Position Single Solenoid
- Maximum Flow Rate
- 500L/min
- Port Gender
- Female
- Maximum Operating Temperature
- 50°C
- Solenoid Power Consumption
- 3.6W
- Standards/Approvals
- RoHS, CE
- Width
- 30mm
- Length
- 120mm
- Height
- 95mm
- Hazardous Area Certification
- No
- Electrical Connection Type
- DIN 43650 A
- Number of Positions
- 2
