ข้อมูลจำเพาะทางเทคนิค TE Connectivity 2499542-2

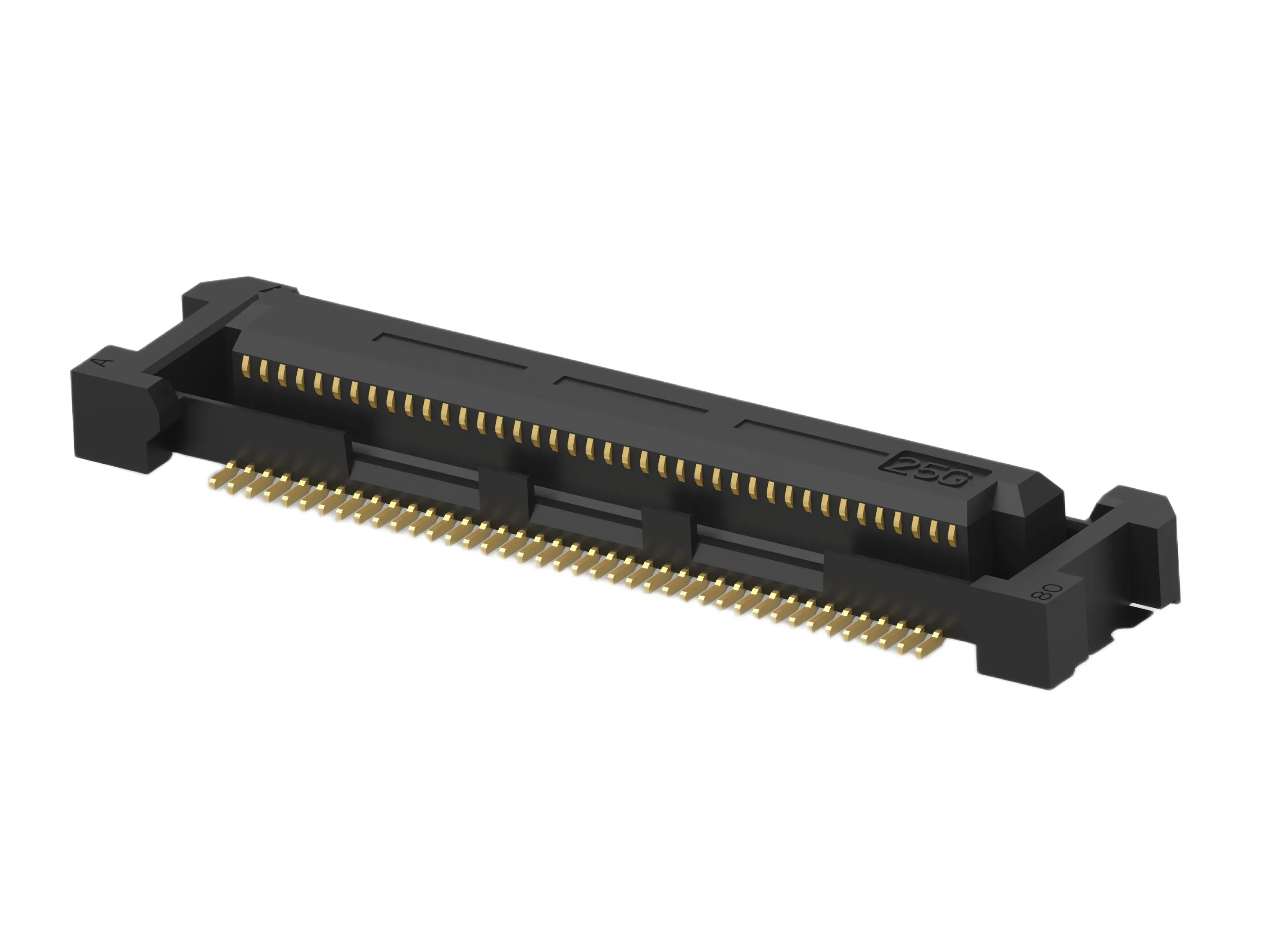

TE Connectivity 2499542-2
- Number of Contacts
- 80
- Product Type
- Connector Assembly
- Number of Rows
- 2
- Sub Type
- Board-to-Board
- Current
- 500mA
- Pitch
- 0.5mm
- Termination Type
- Surface Mount
- Housing Material
- Phosphor Bronze
- Mount Type
- Surface
- Orientation
- Vertical
- Stacking Height
- 3.25mm
- Connector System
- Board-to-Board
- Voltage
- 12V
- Series
- 2499542
- Row Pitch
- 0.5mm
- Minimum Operating Temperature
- -40°C
- Contact Gender
- Female
- Contact Material
- Phosphor Bronze
- Maximum Operating Temperature
- 125°C
- Contact Plating
- Gold
- Standards/Approvals
- RoHS
