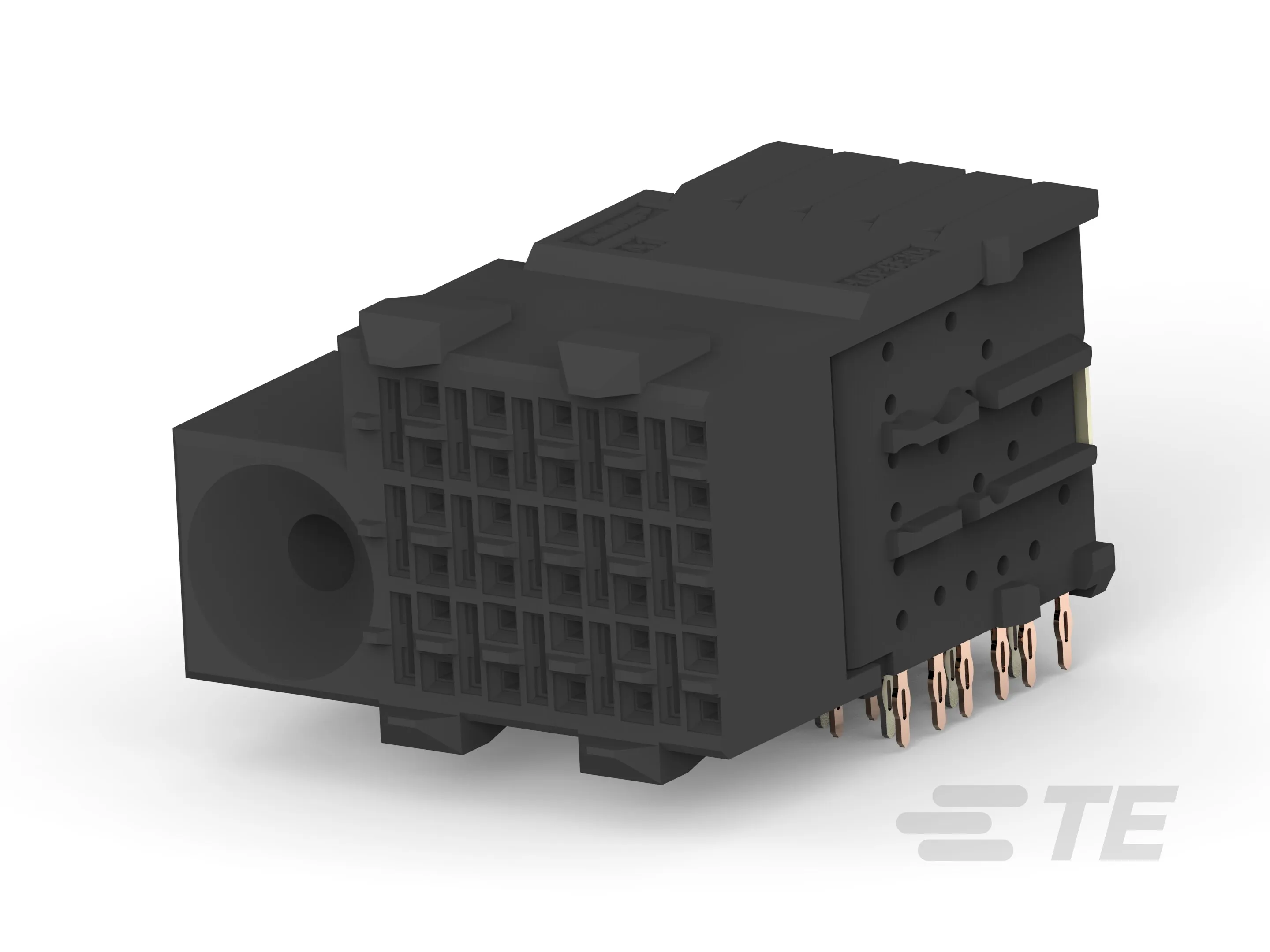

TE Connectivity 5120789-1 Z-PACK 2.5 mm Pitch High Speed Backplane Connector, Right Angle Female, 5 Column, 6 Row, 30 Way

ข้อมูลจำเพาะทางเทคนิค TE Connectivity 5120789-1

TE Connectivity 5120789-1

Product Type

Backplane Connector

Backplane Connector Type

High Speed

Current

1.15A

Number of Contacts

30

Number of Columns

5

Orientation

Right Angle

Number of Rows

6

Voltage

250V

Connector Gender

Female

Housing Material

Fibreglass Polyester

Pitch

2.5mm

Contact Material

Copper Alloy

Mount Type

Board

Contact Plating

Tin Plated

Termination Type

Solder

Minimum Operating Temperature

65°C

Maximum Operating Temperature

105°C

Contact Gender

Female

Standards/Approvals

2016, EU RoHS Directive 2011/65/EU Compliant, EU ELV Directive 2000/53/EC Compliant, UL 94V-0, China RoHS 2 Directive MIIT Order No 32

Series

Z-PACK
