ข้อมูลจำเพาะทางเทคนิค TE Connectivity 825433-4

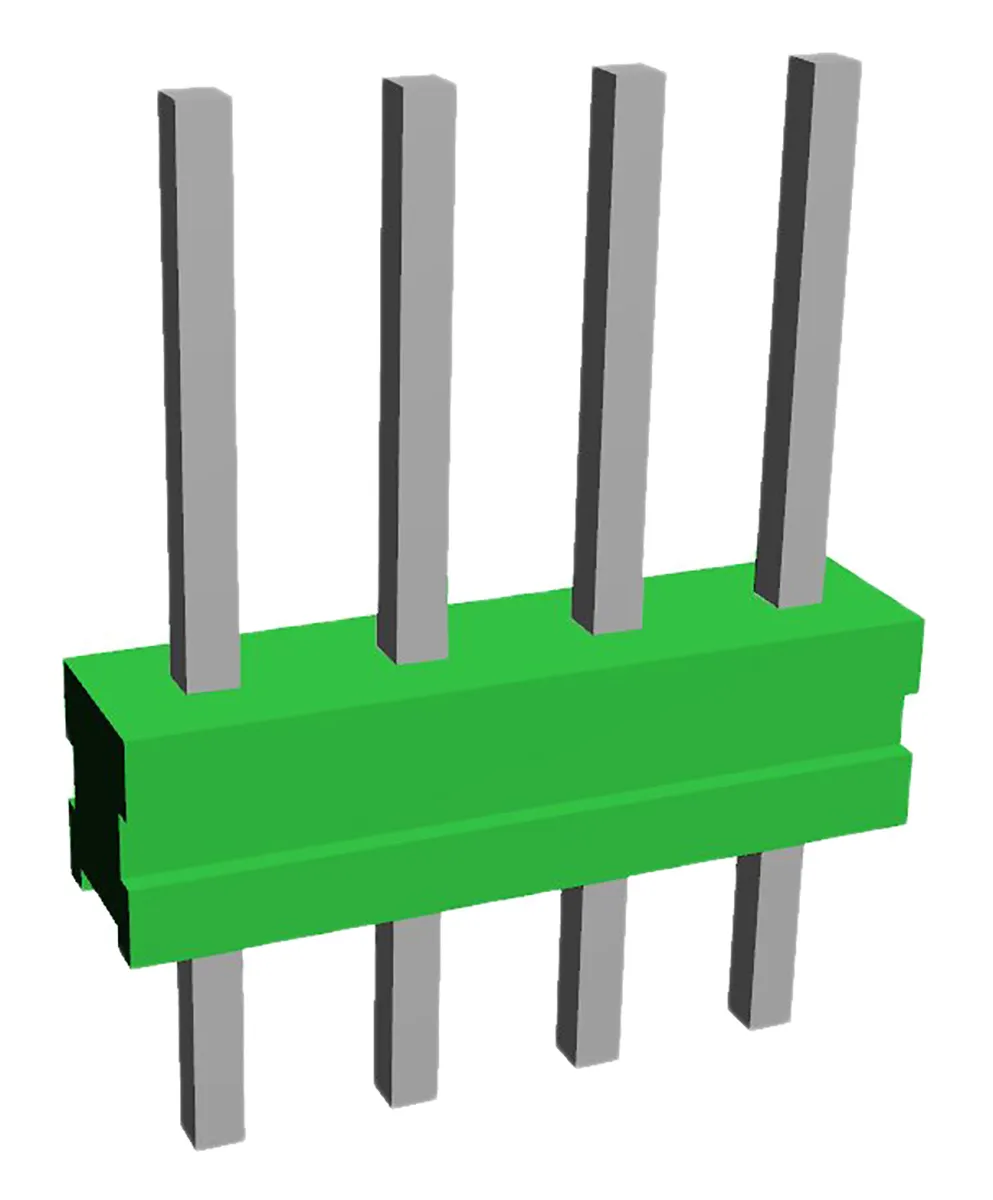

TE Connectivity 825433-4
- Product Type
- Pin Header
- Series
- AMPMODU MOD II
- Current
- 3A
- Pitch
- 2.54mm
- Number of Contacts
- 4
- Housing Material
- Polybutylene Terephthalate
- Number of Rows
- 1
- Orientation
- Straight
- Shrouded/Unshrouded
- Unshrouded
- Mount Type
- Through Hole
- Connector System
- Board-to-Board, Wire-to-Board
- Contact Plating
- Gold
- Contact Material
- Phosphor Bronze
- Row Pitch
- 2.54mm
- Termination Type
- Solder
- Minimum Operating Temperature
- -65°C
- Maximum Operating Temperature
- 105°C
- Tail Pin Length
- 3.2mm
- Contact Gender
- Male
- Standards/Approvals
- No
- Mating Pin Length
- 6.7mm
- Voltage
- 750V
- 3D Model
- https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=99299&DisplayLogo=False
